Description

Recently the ANZAC helideck was released for the benefit of helicopter owners in New Zealand and Australia.

Many designs and sizes available, however this design is 24.0 metre x 16.0 metre aluminium modular helicopter deck with 1.10 metre freeboard, anchoring points, fold down railings, elastomer coated polystyrene encapsulated floats, including shipping in 5 x containers from our yard to Auckland Port.

Specifications

Accommodation

Design

All AMT Helicopter Decks are designed and manufactured from marine grade aluminium. While the fundamental benefits of aluminium - lightweight, cost effective, low maintenance and safety.

Our designs include Mountain Top, Lake Side Partial Floating, Full Floating Anchored, Full Floating with Outboard Engines for Transport, Modular Barge Style or Pontoon Style, Roof Top, Vessel, Rigs, Floating Resorts, etc.

Safety First

From the design core we build Aluminium decks with incorporated safety features to meet FAA, IPA, OICAO, CAP37 standards.

Construction

PRICE USD $400,000 INCLUDING SHIPPING to Auckland

Grade 6082 marine aluminium extrusions bolted down to grade 6082 470 x 180mm beams supported on 52 floatation units.

1.10 meter freeboard.

Fully assembled on site and then broken down and packaged into 5 containers for transport from our yard to Ports of Auckland. (other Ports considered)

Site assistance included for reassembly upon arrival into NZ

Warranty 12 months

Excludes Import taxes, permits and approval costs if and where applicable.

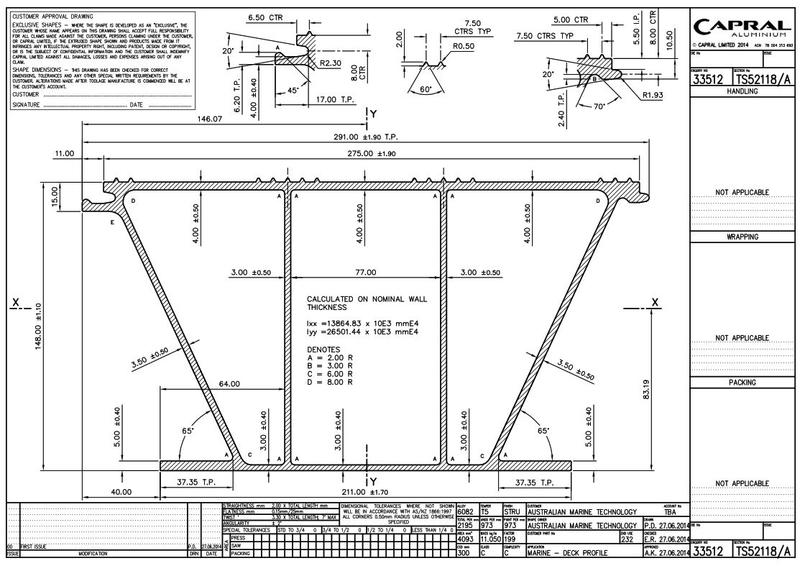

Capral Aluminium Extrusion

Certification

All newbuild ships and boats are built to IACS Classification and flag state rules pertaining to the country of destination.
