| Blue Sea Brokers | |
| Nigrán, Pontevedra, 36350, Spain | |
| Telephone: | Reveal Telephone Number |
| View All Blue Sea Brokers Listings | |
| Status: | Available |
| Location: |
EAST MED Turkey [View Map] |
| Reference: | DO0406 |
Description

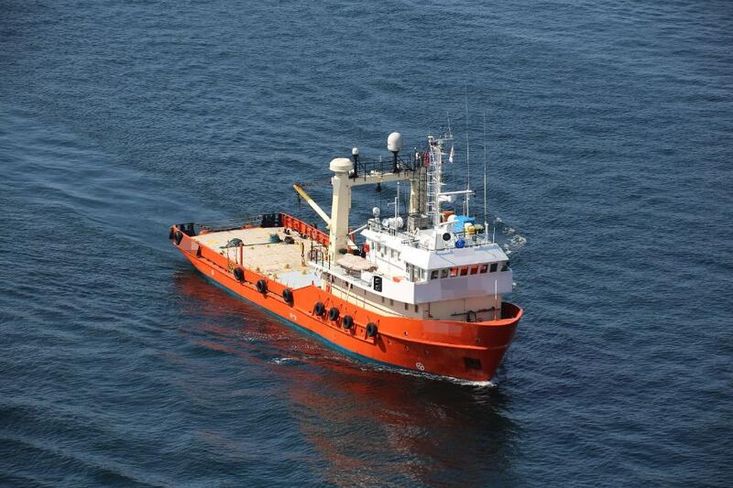

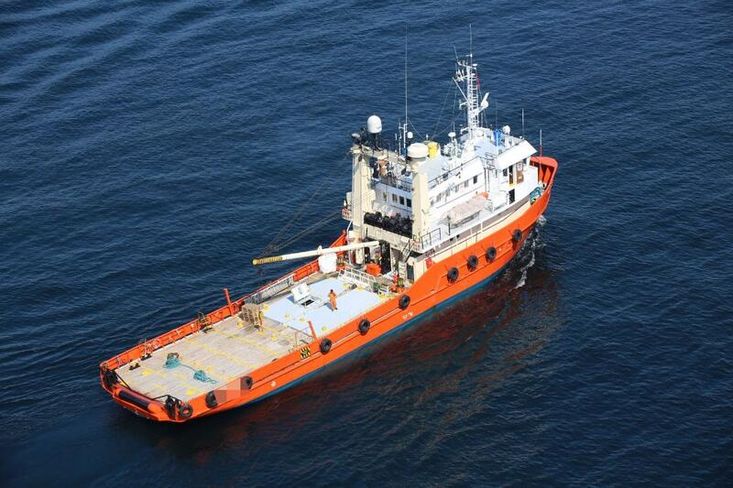

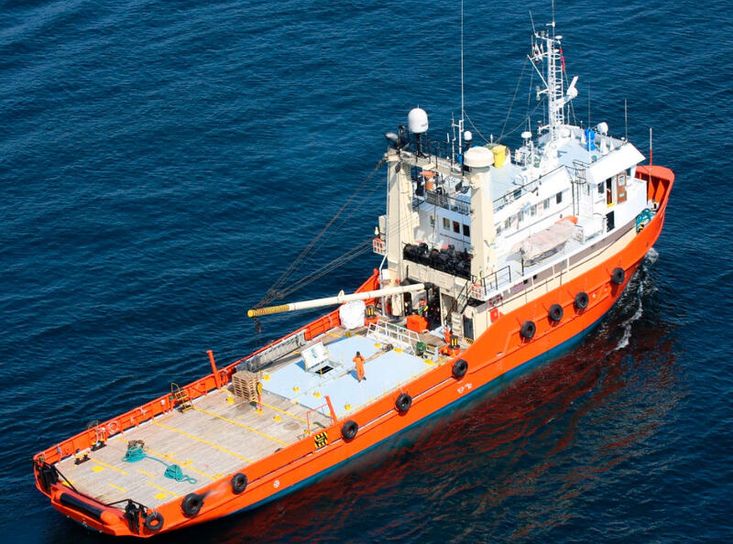

DO0406 Offshore - Supply Support Vessel For Sale
- FROM DIRECT OWNERS -
Operation World Wide
Endurance 9,500 miles (45 days)
TANK CAPACITIES & DISCHARGE RATES
Marine Diesel 136m3 Discharge rate 14.1m3 / hour
Fresh Water 36.4m3
Ballast 61.5m3
Specifications
| Vessel type: | DO0406 Offshore - Supply Support Vessel For Sale |
| Builder: | NORWAY |
| Constructed: | 1979 |
| Class Society: | DNVGL |
| Class Notation: | 100 A5 Offshore Supply Vess |
| Berths: | 18 |
| No. of engines: | 1 |
| Engine model: | Wichmann 4 AXA @ 375 rpm |
| Engine power: | 1350 |
| Maximum Speed: | 10 Knots |
| Length over all: | 41.65m |
| Beam: | 9.20m |
| Maximum draft: | 3.67m |
| Hull material: | Steel |
| Fuel capacity: | 136 Cubic Metres |
| Water capacity: | 36 Cubic Metres |

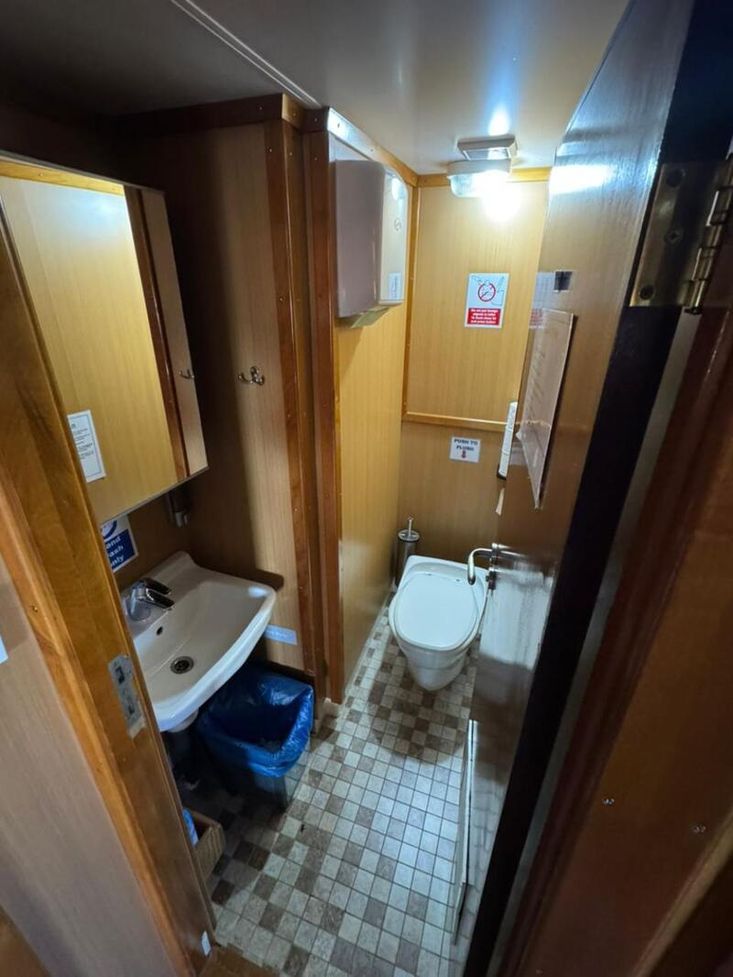

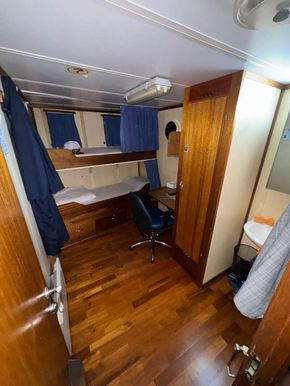

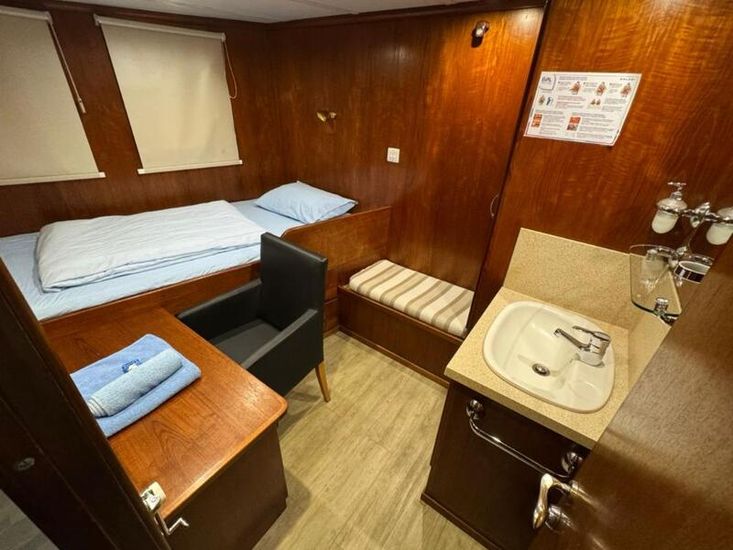

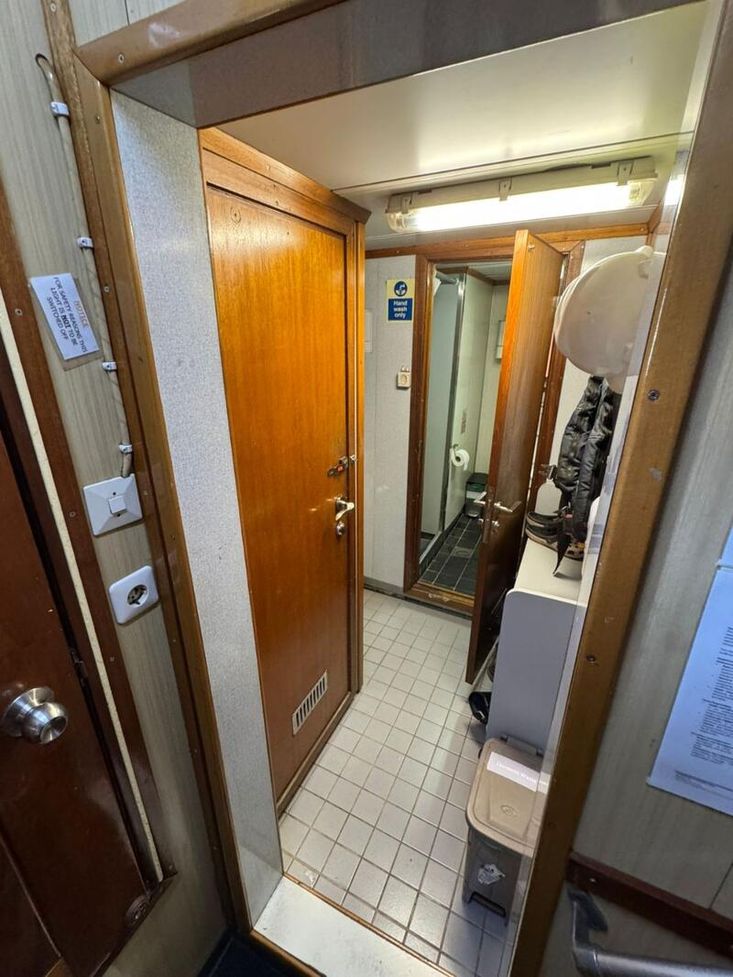

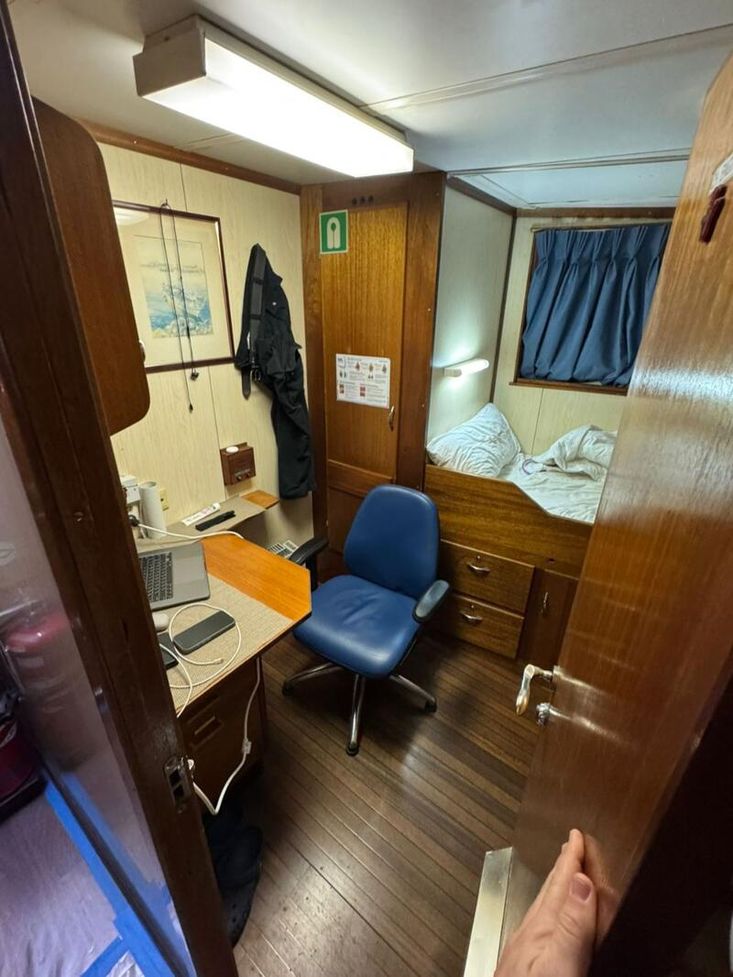

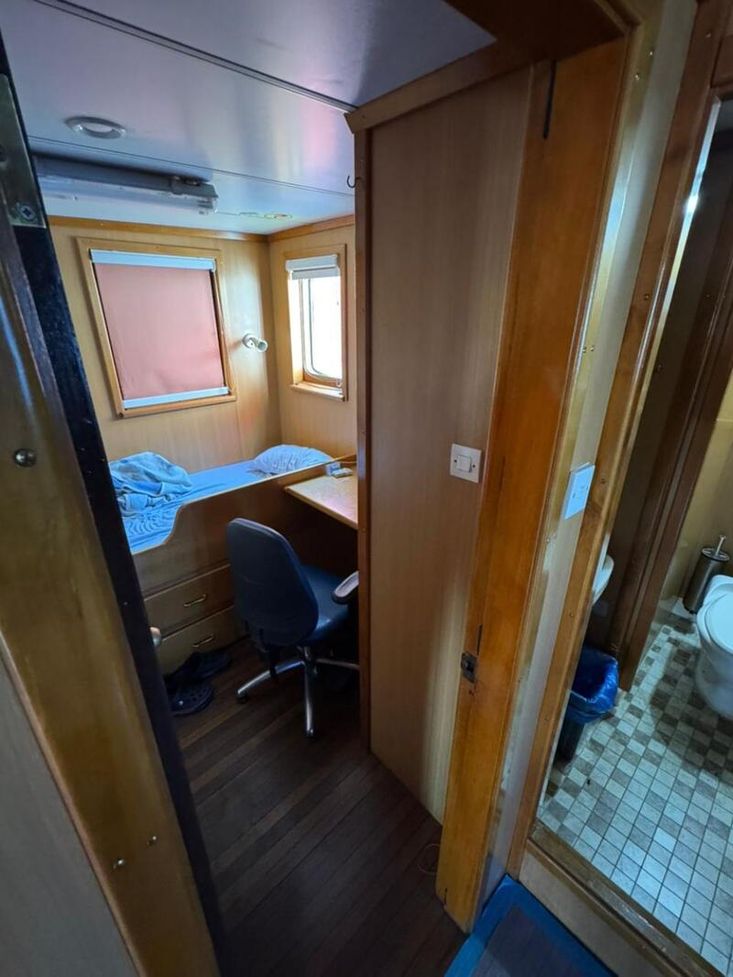

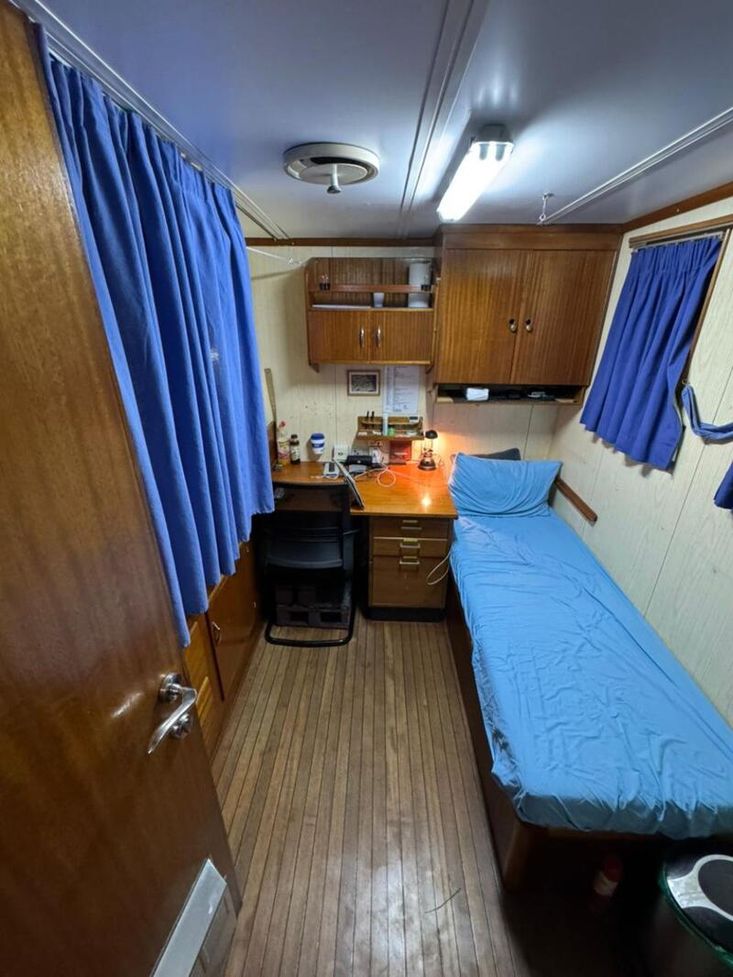

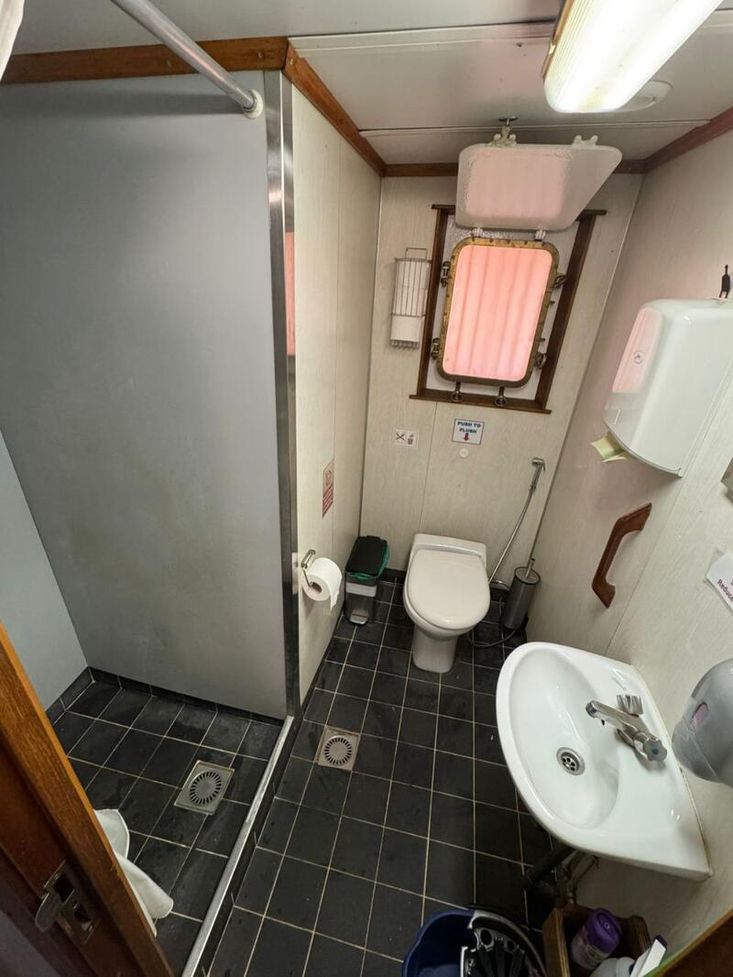

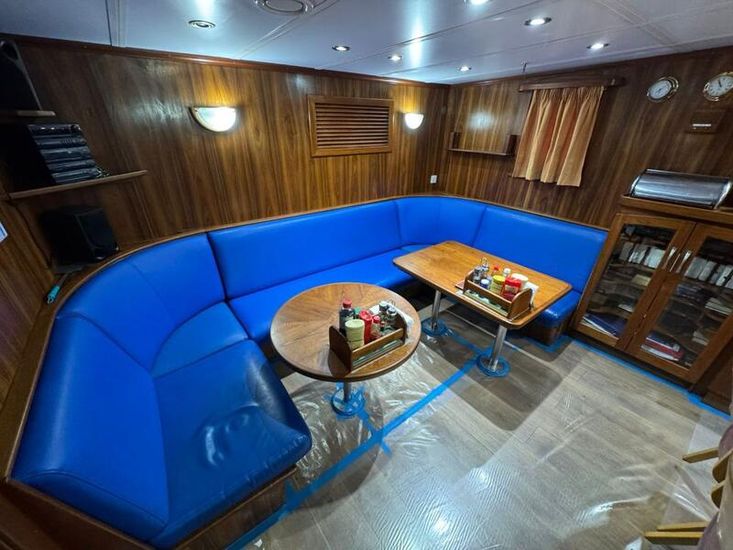

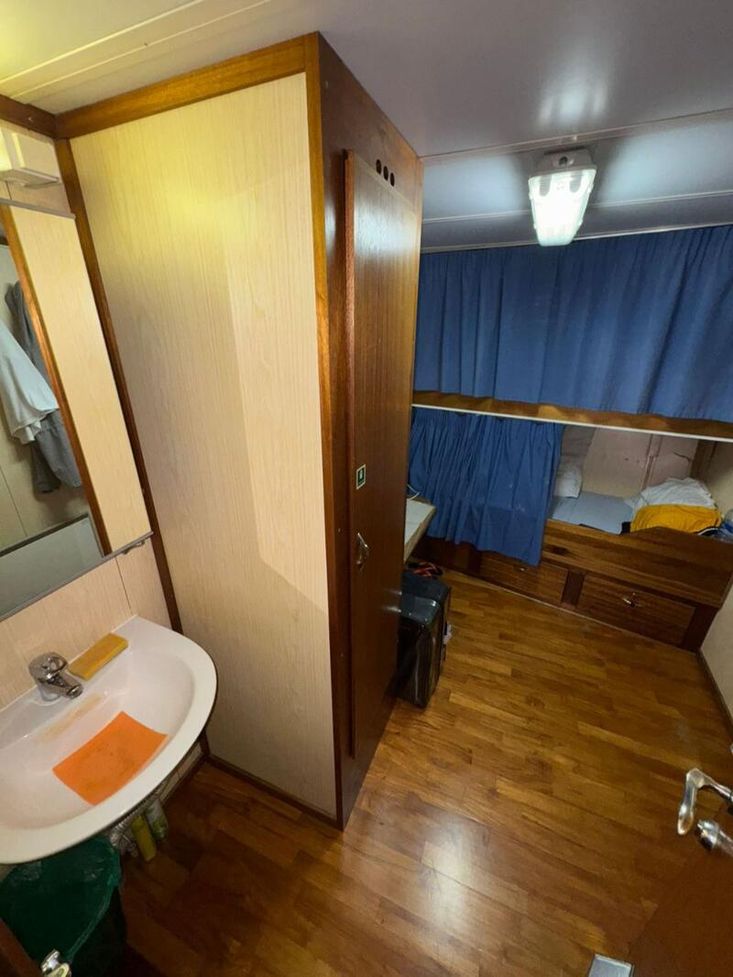

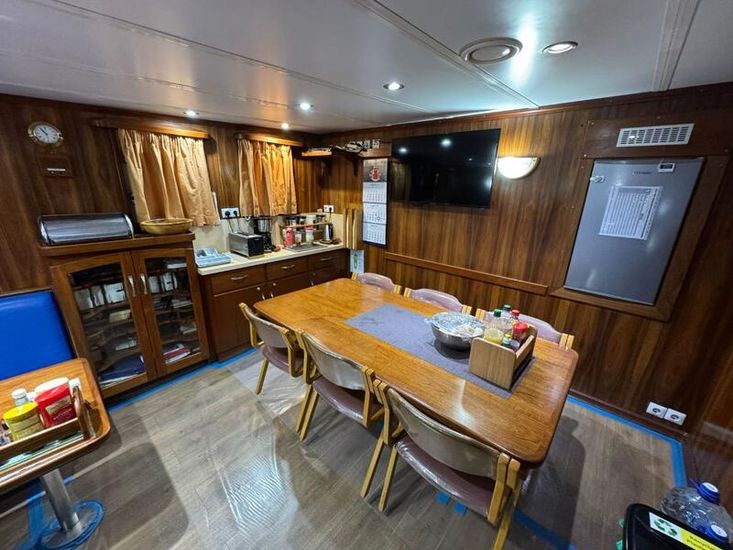

Accommodation

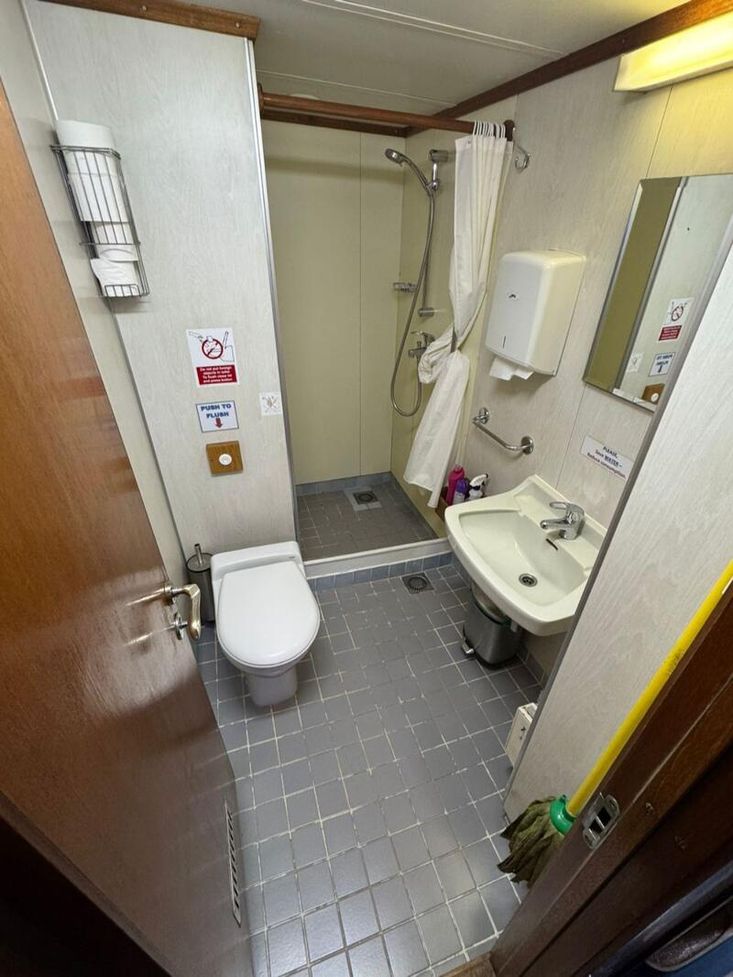

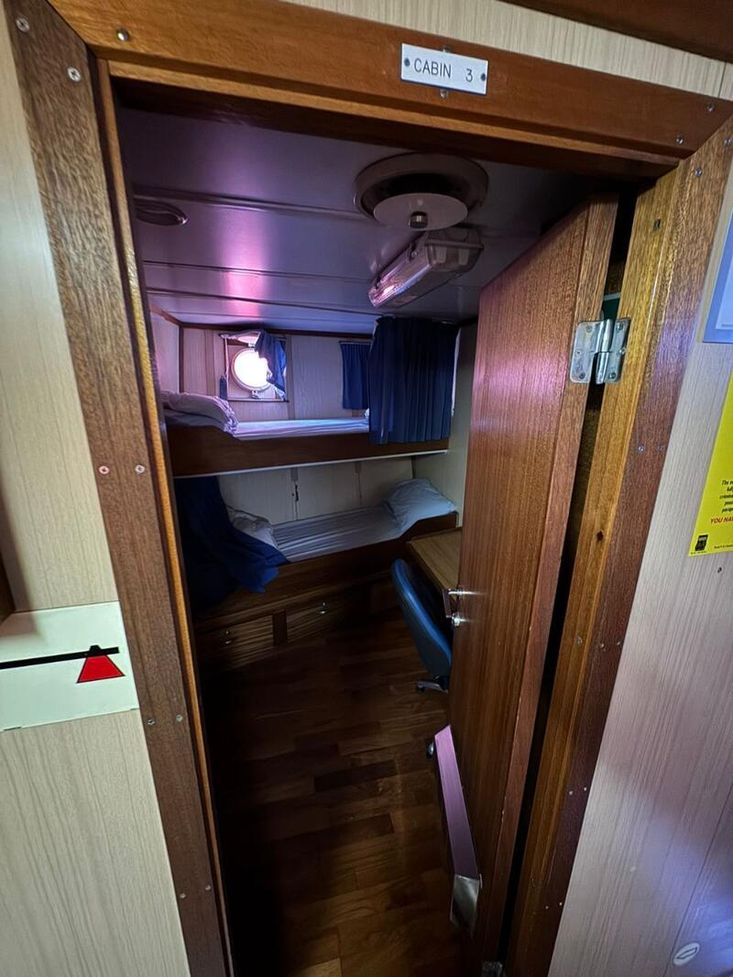

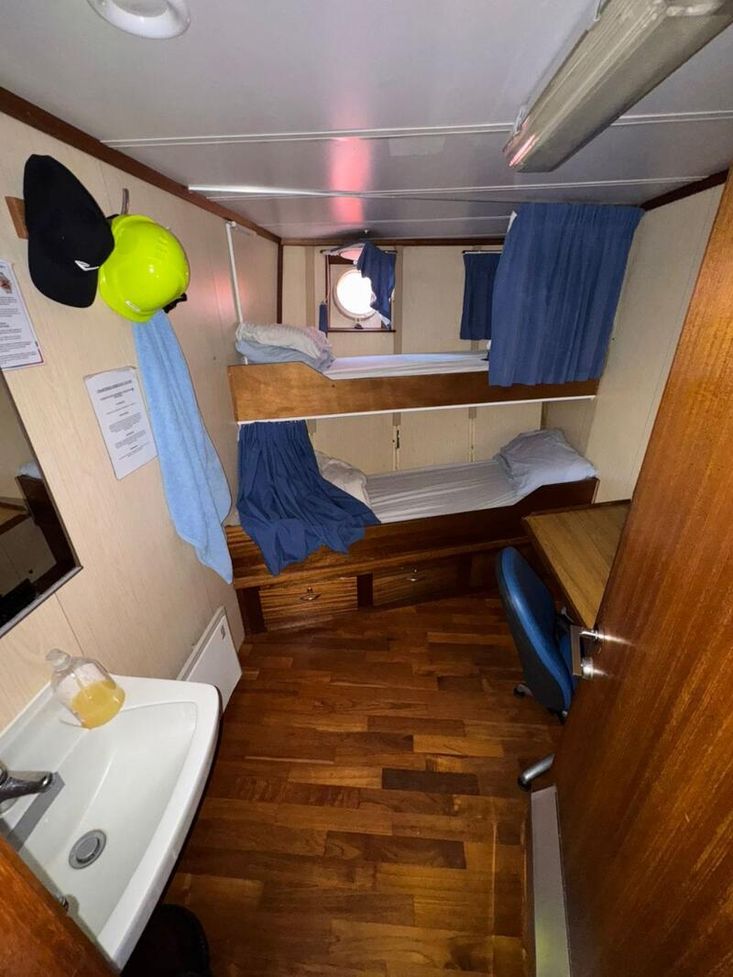

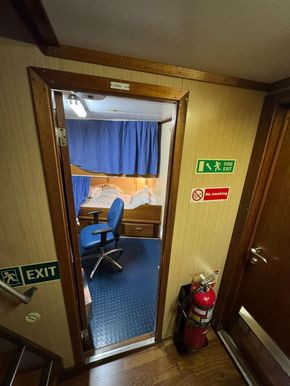

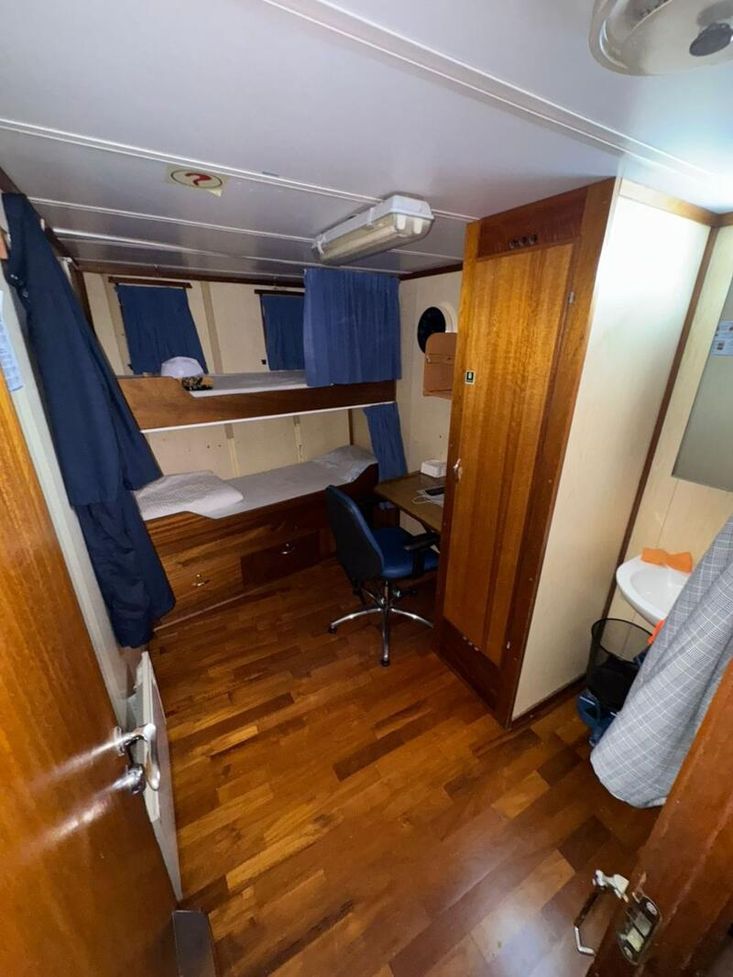

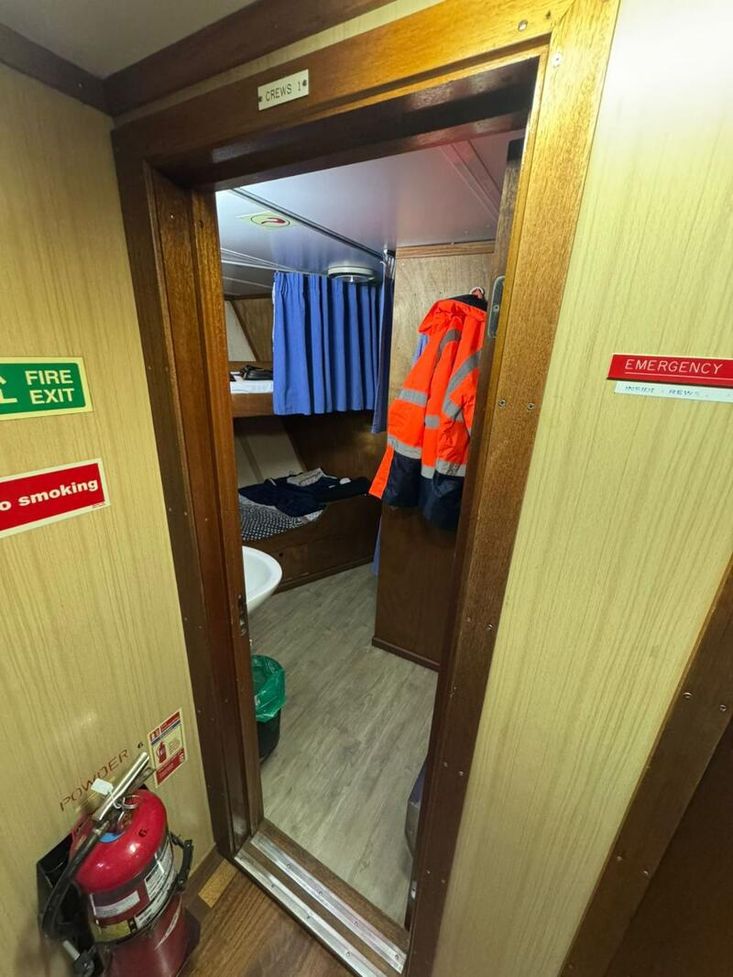

Total Accommodation 18 bunks

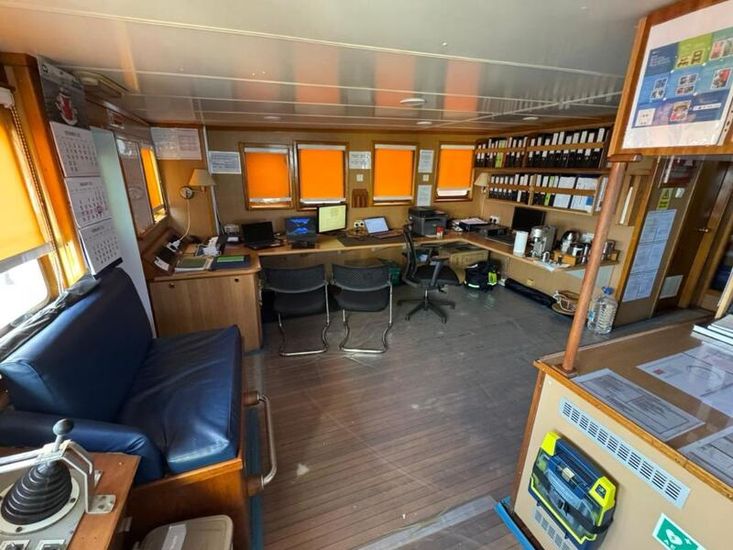

Other Facilities Survey Room - Dedicated 20 m² aft of the bridge area
Construction
Built (year and place) 1979,NORWAY
Hull material Steel
Length Overall (m) 41.65 m
Breadth (m) 9.20 m
Depth (m) 4.20 m
Draft (m) 3.67 m
NT (tons) 116 tons
GT (tons) 387 tons
DWT (tons) 471 tons
Freeboard max draft 0.53m
Bow Thrusters 1 x Brunvoll Tunnel 75kw
Stern Thruster 1 x Celtic Hydraulic 107kw

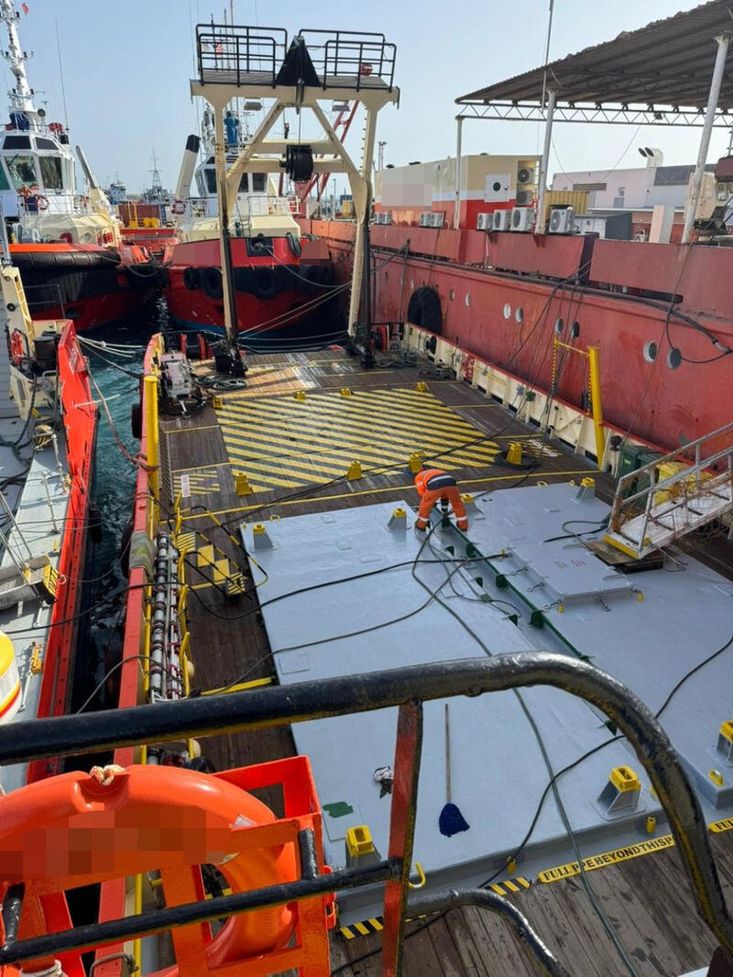

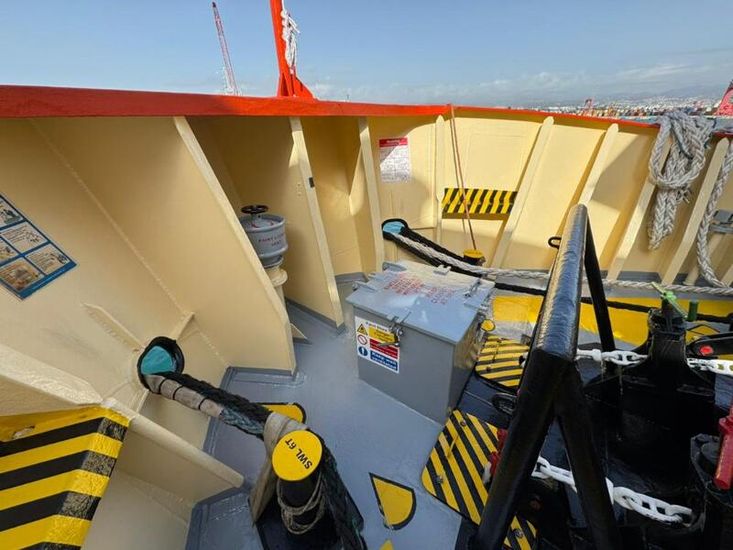

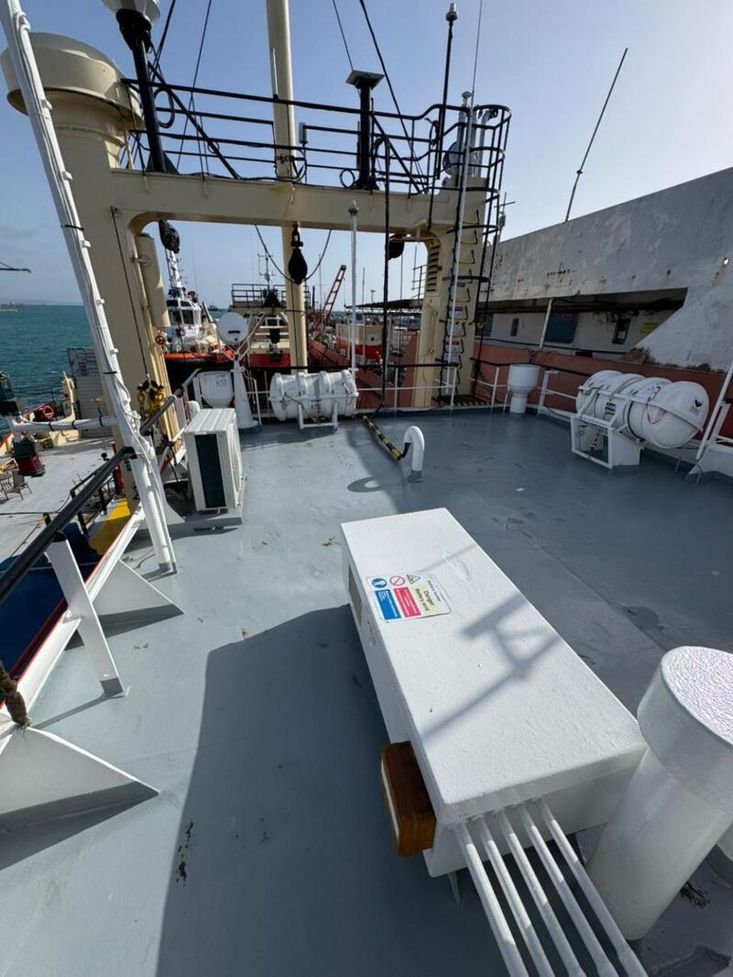

Equipment

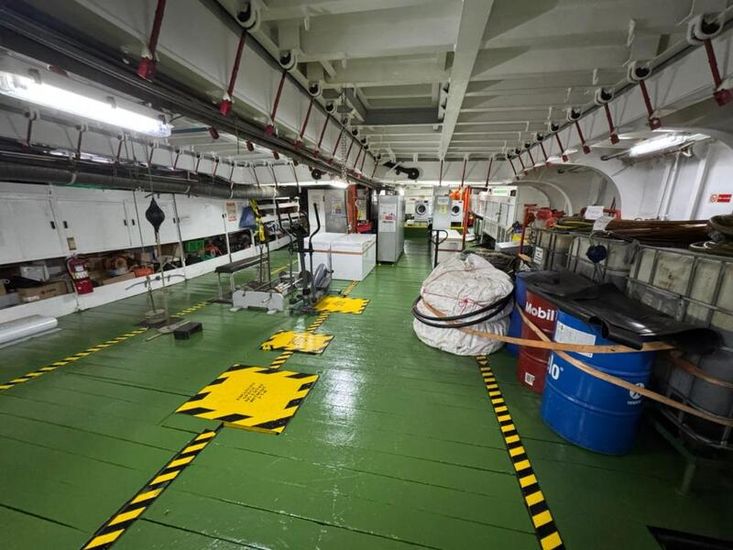

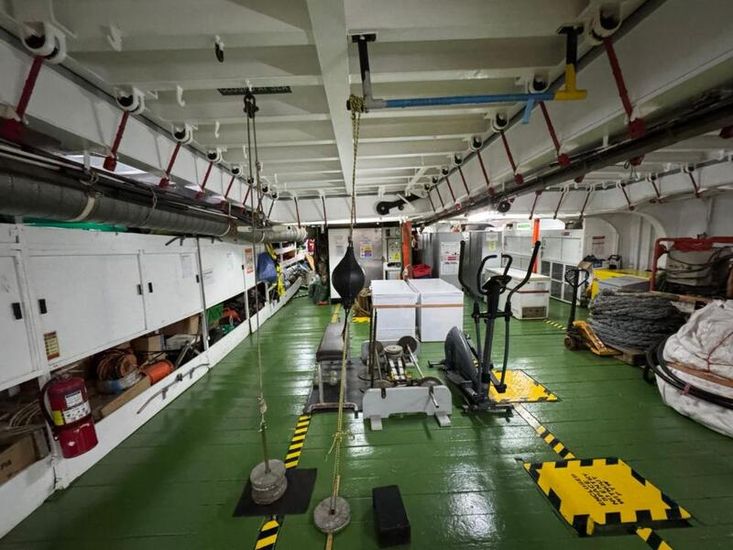

Under Deck Hold 18m x 8m, 2.62 m high

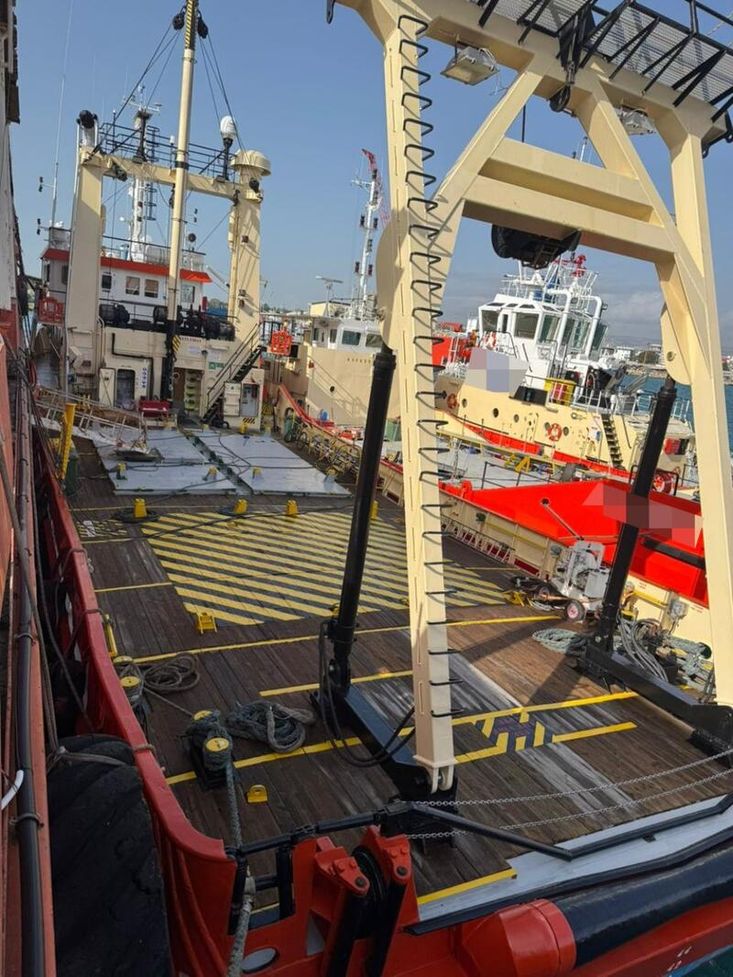

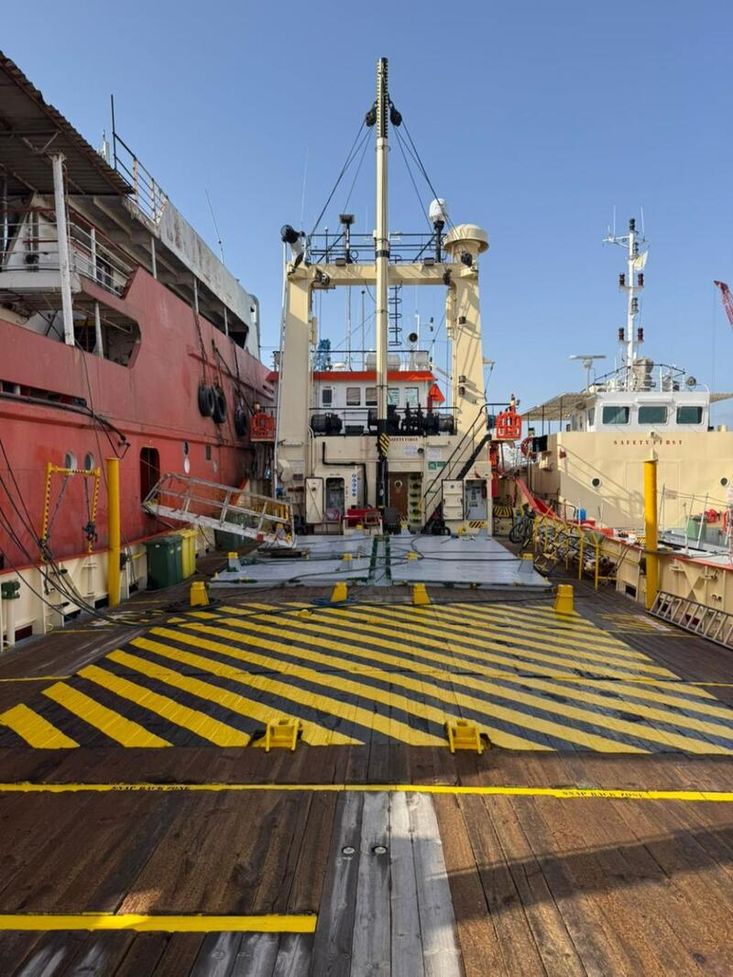

Deck Area 198m² (22.5 m x 8.82 m) (able to load 4 x 20’’ containers)
Hatch Opening 2 hatches @ 7m x 2.8m each, Able to accommodate 2 x 20 feet containers of 8 feet high
Hold Capacities 377m³

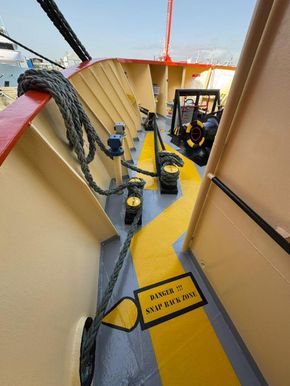

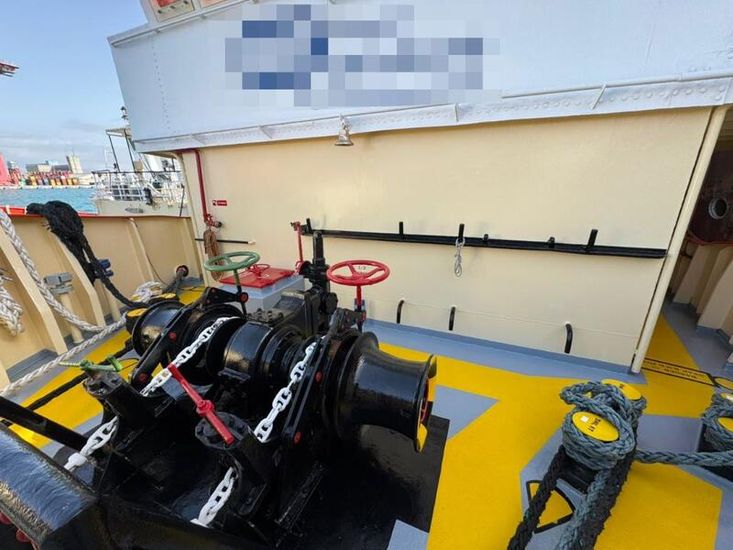

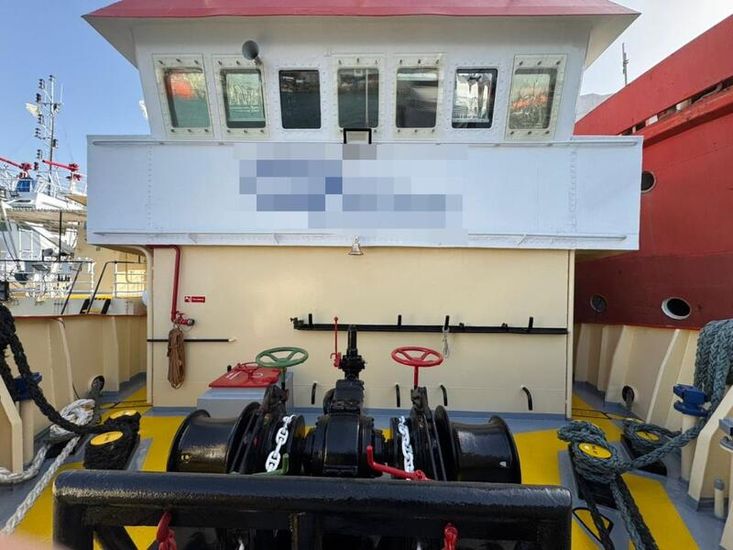

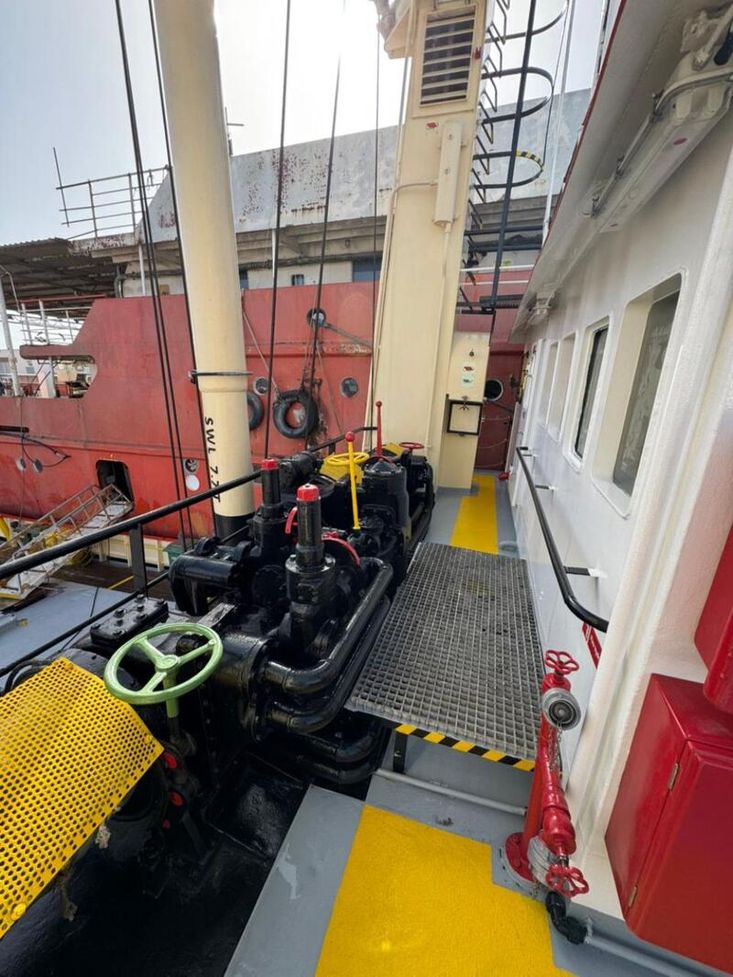

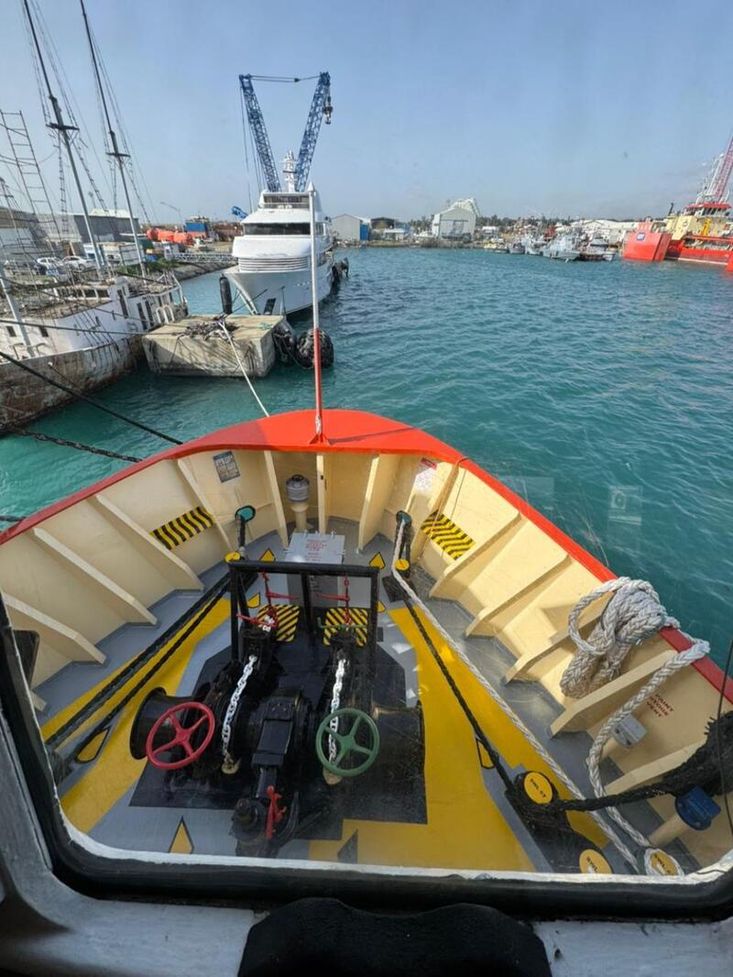

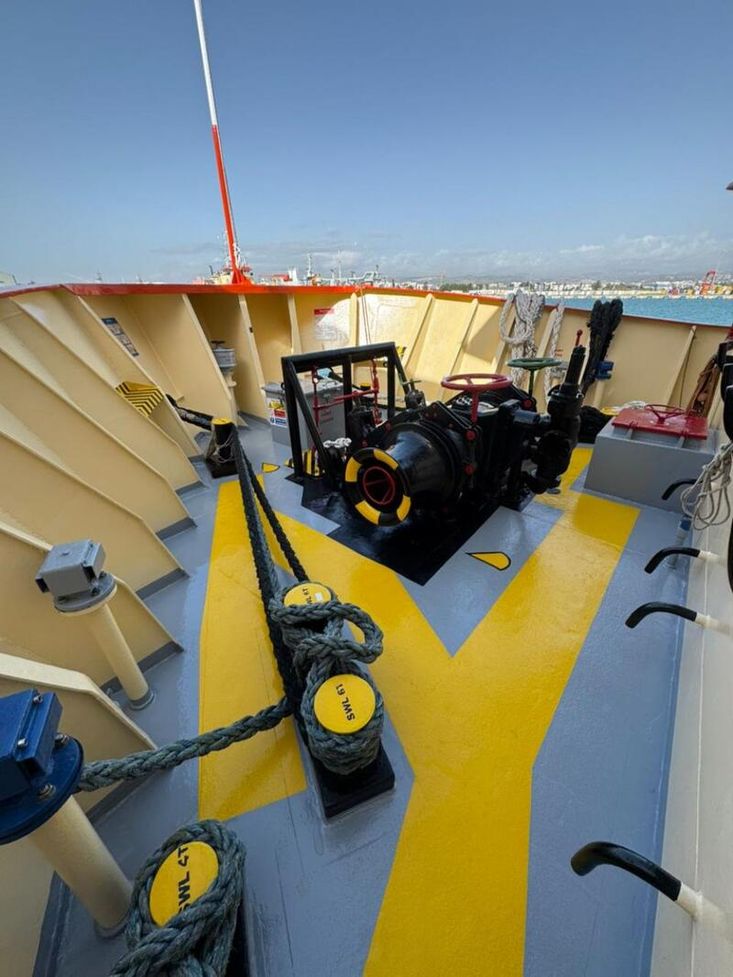

Capstan 2 X Brattvaag Hydraulic SWL 6 tons
Deck Crane 7.7t @ 9.7m

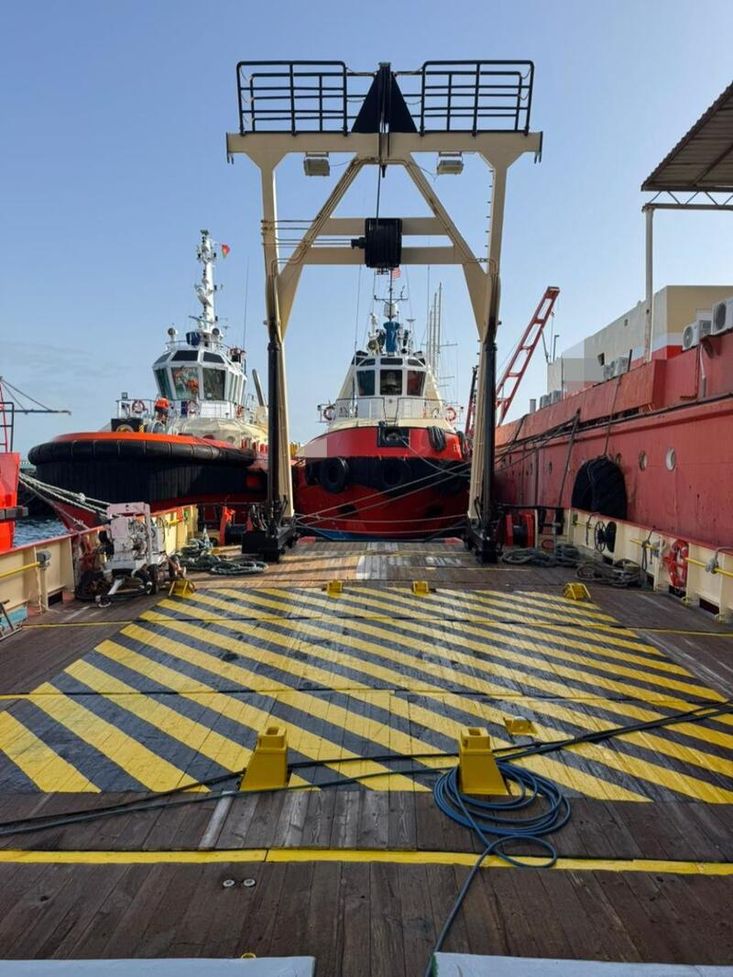

A-Frame Hydraulic – 10t SWL (when fi?ed)
Deck Cargo Capacity 70t
Dacon Scoop Available on request

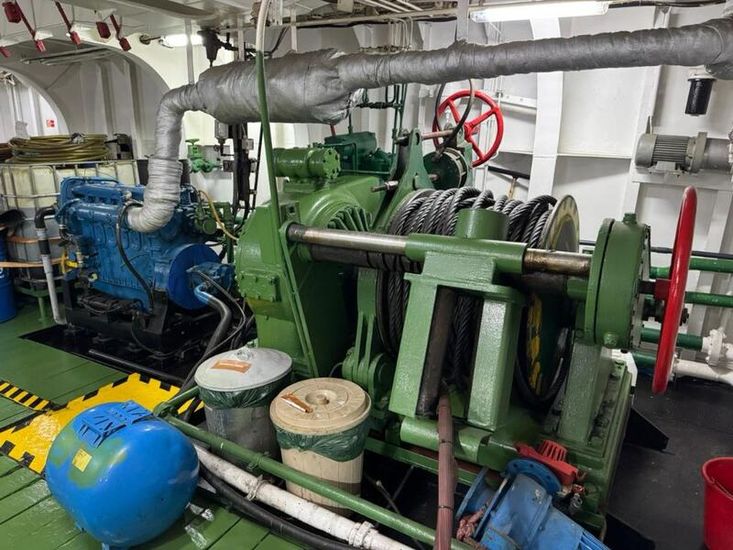

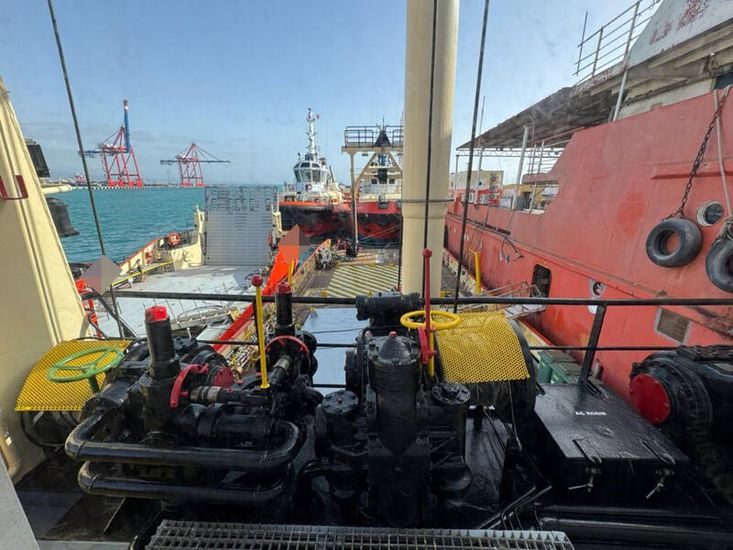

Deck Winch Brattvaag Hydraulic SL 12, 50 t Breaking Power Inner Layer, 25 t Breaking Power Outer Layer

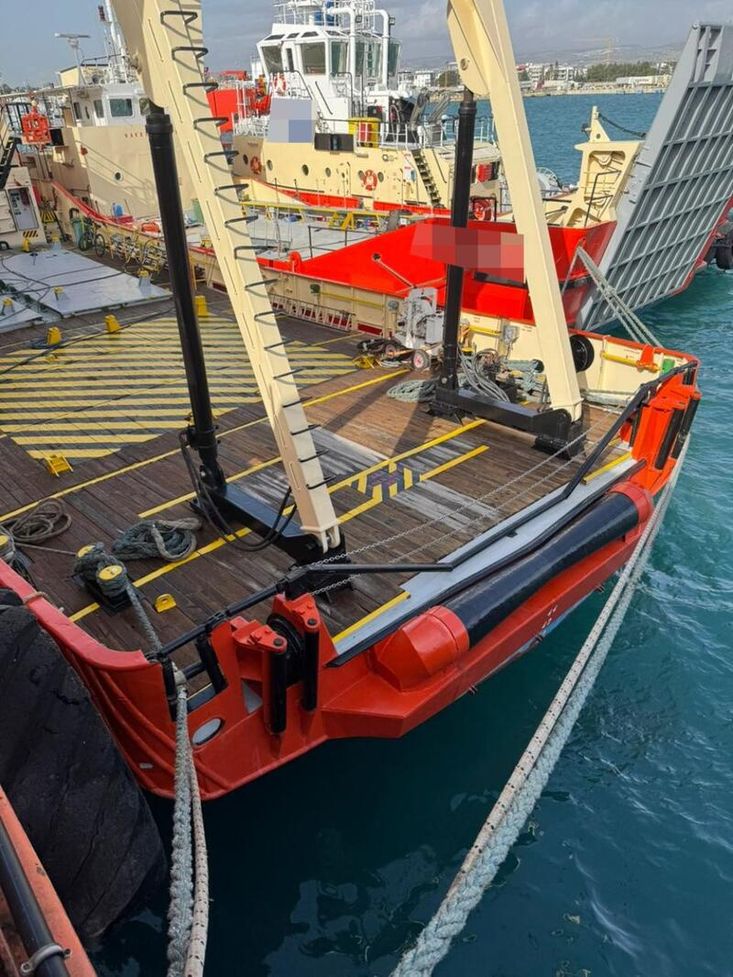

Stern Roller 6m with 6 t SWL
Electrical Power on Deck 230V / 50Hz Three Phase

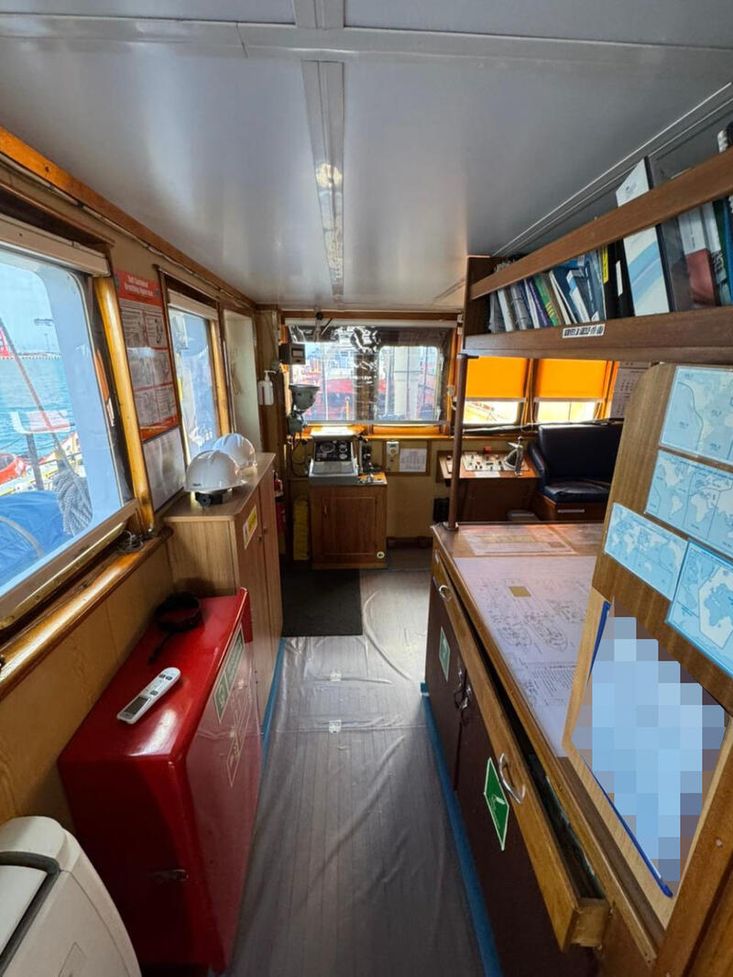

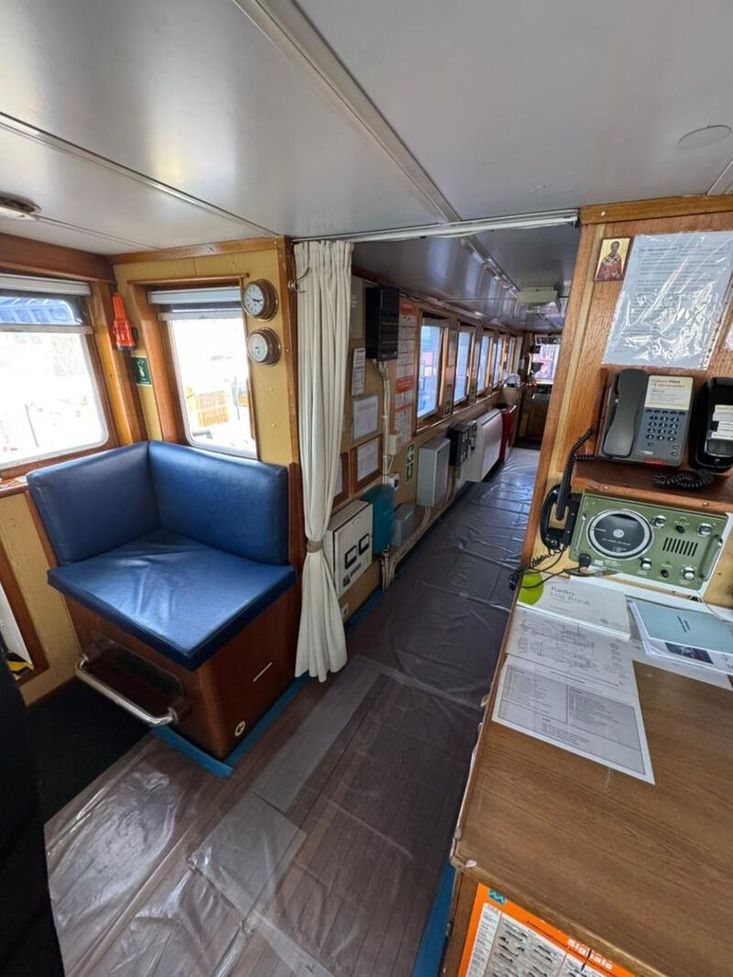

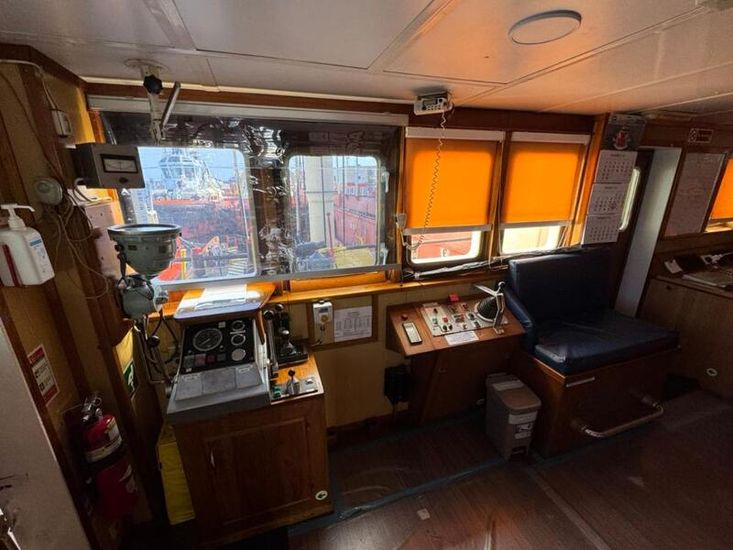

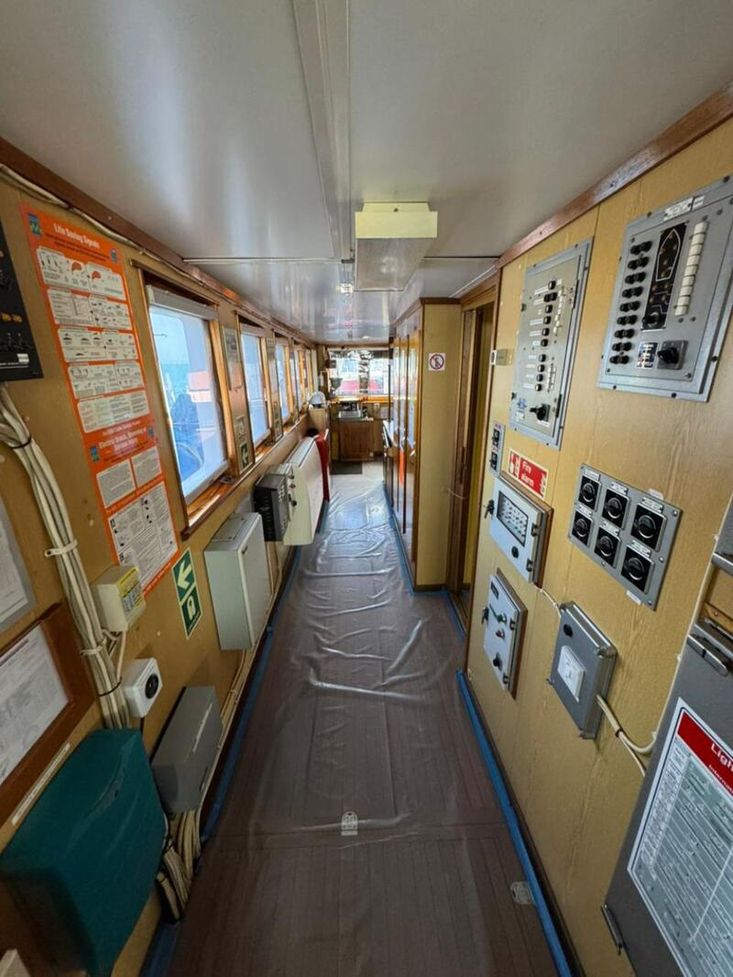

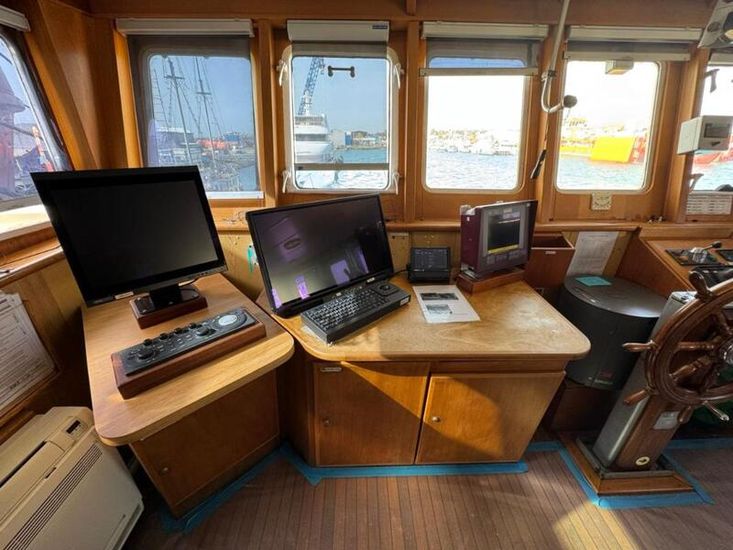

Navigation Equipment
Radars 1 x JRC JMR—5410, 1 x SIMRAD R3016 12U/6X, 12kw XBand, R3000 PSU
AIS STN Atlas DEBEG 3400
Gyro Compass Anschutz STD 22
Autopilot Anschutz Pilotstar D
Echosounder Echograph 9205
GPS 1 x Trimble GPSNT 200, 1 x MX Marine MX420 DPS
Navtex JRC-NCR-300A
Depth Recorder STN Atlas Echograph 9205
Primary V3- KVH (adaptable to client requirements)
Secondary Iridium Open Port
GMDSS As Per GMDSS A1, A2 and A3

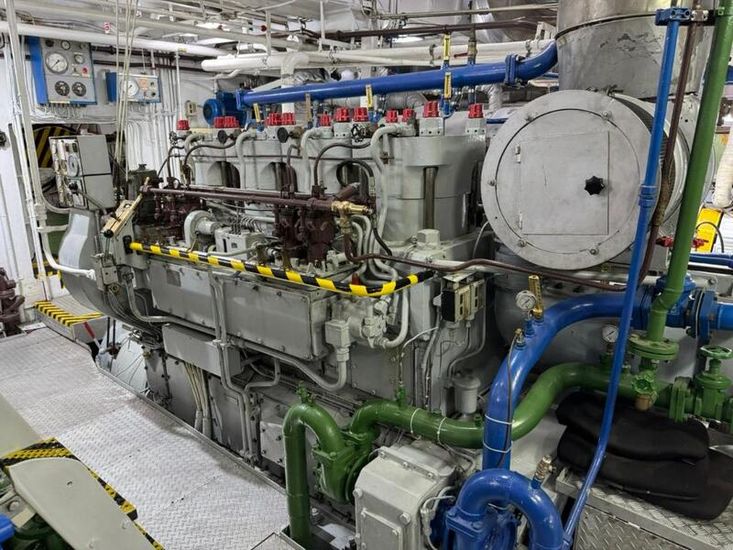

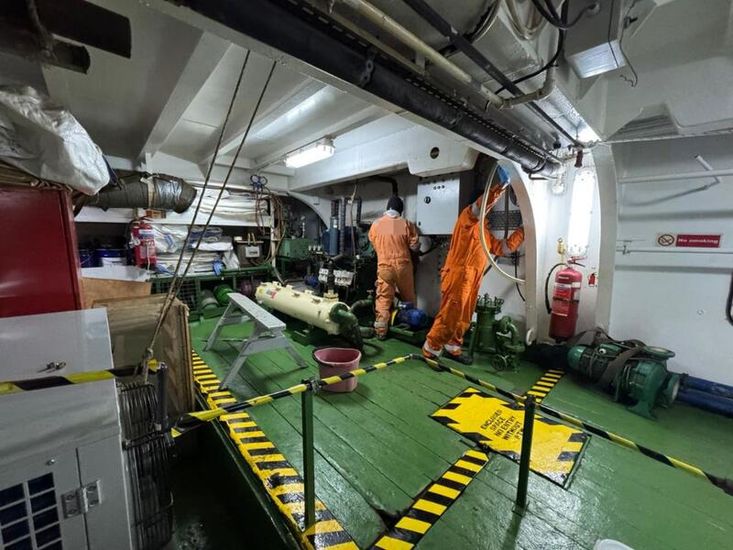

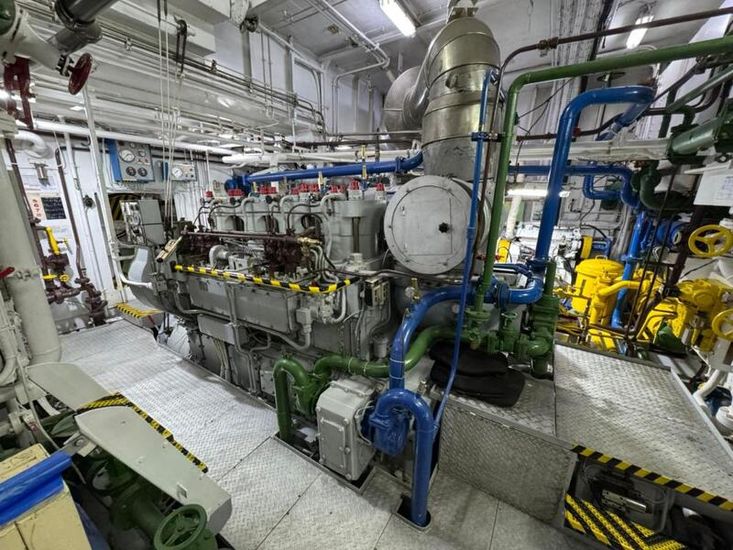

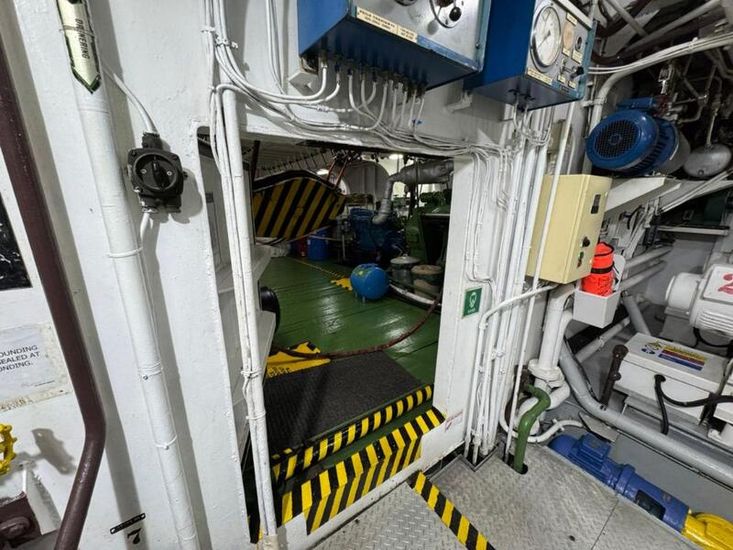

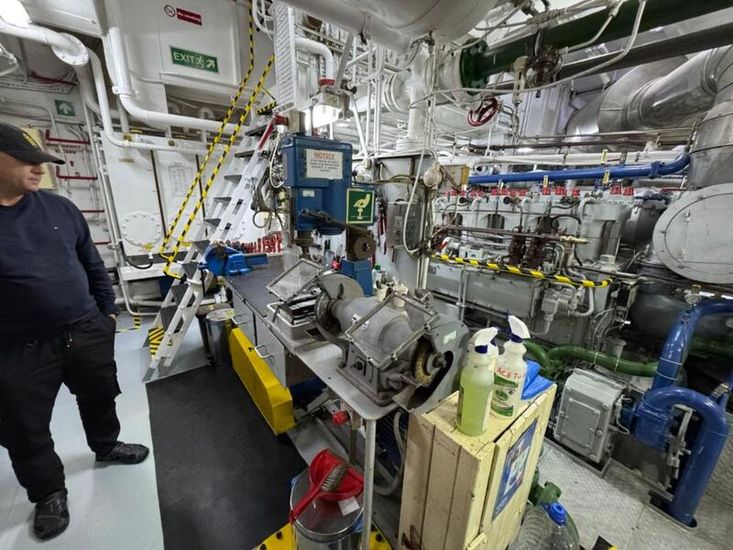

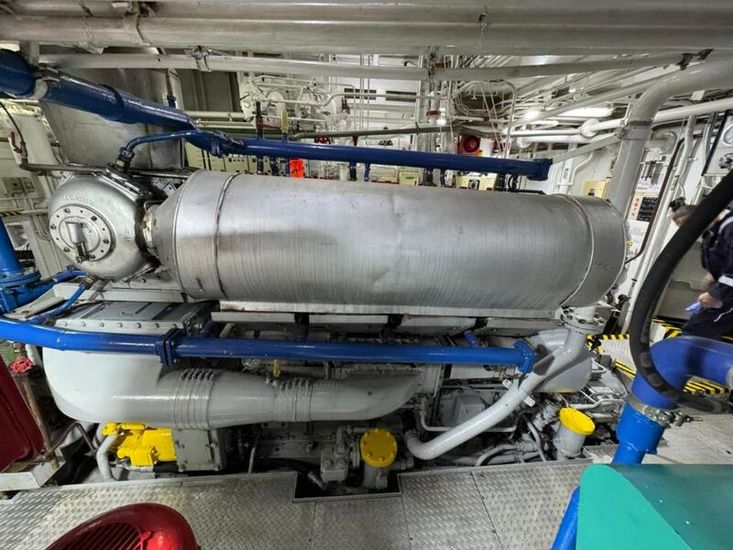

Engine(s)
Total power output (BHP) 1350 bhp

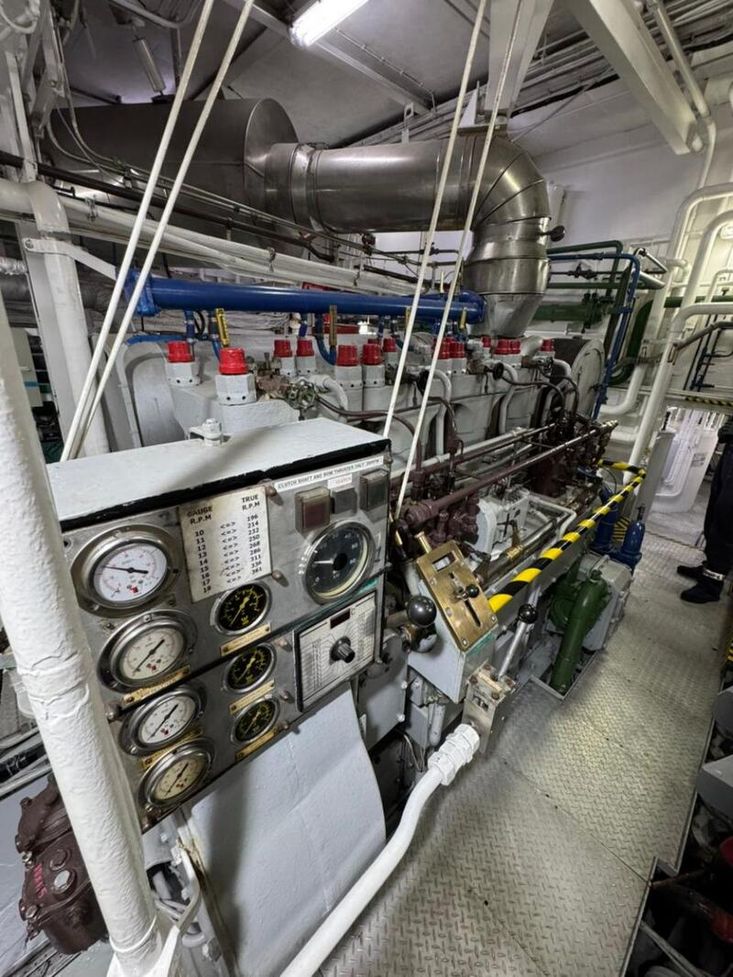

Main Engine(s) (make,type) 1 x Wichmann 4 AXA @ 375 rpm
Main Propulsion System 1 Propeller (variable pitch) in

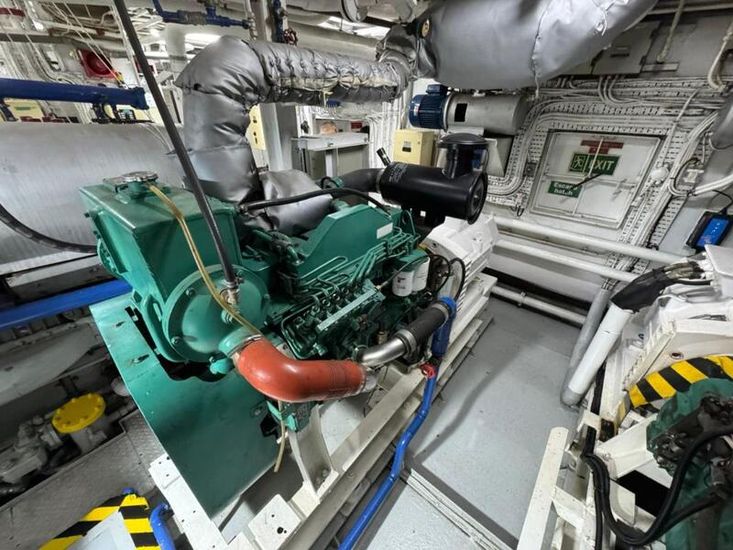

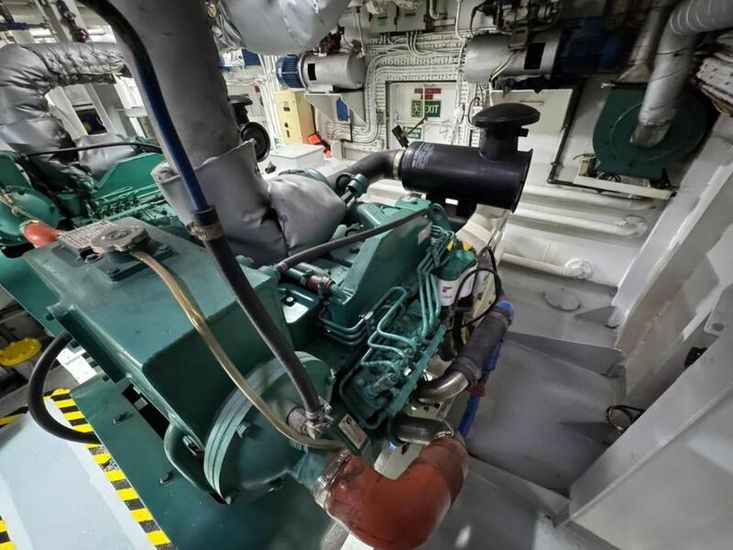

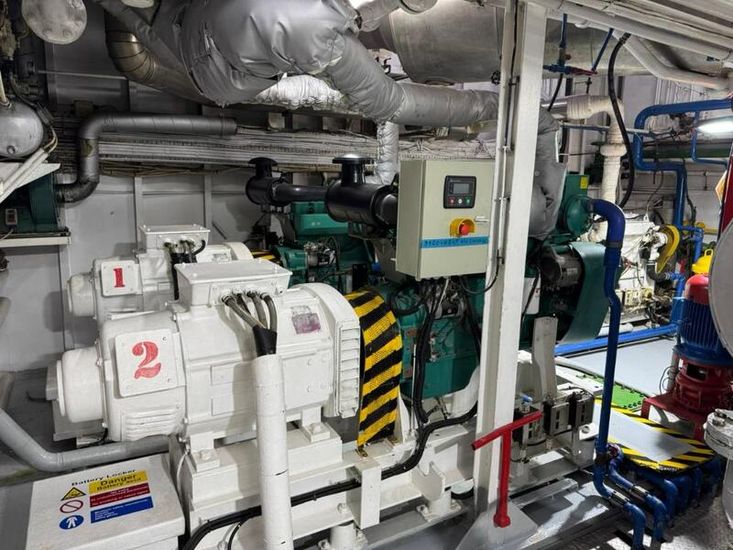

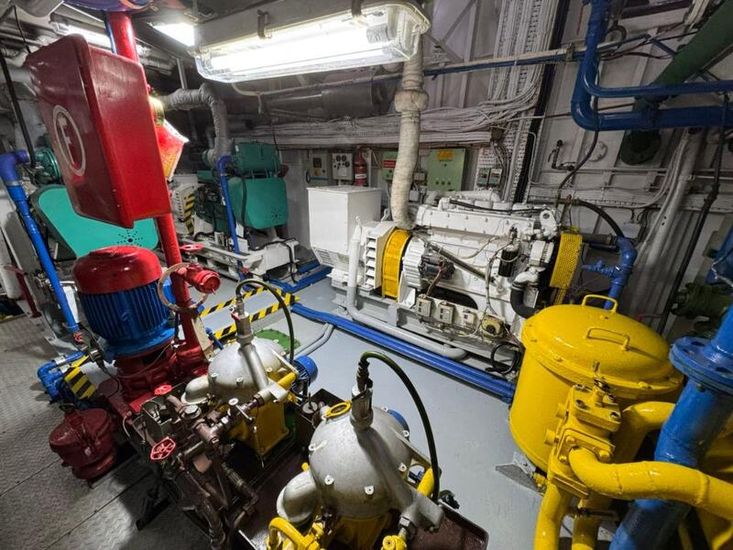

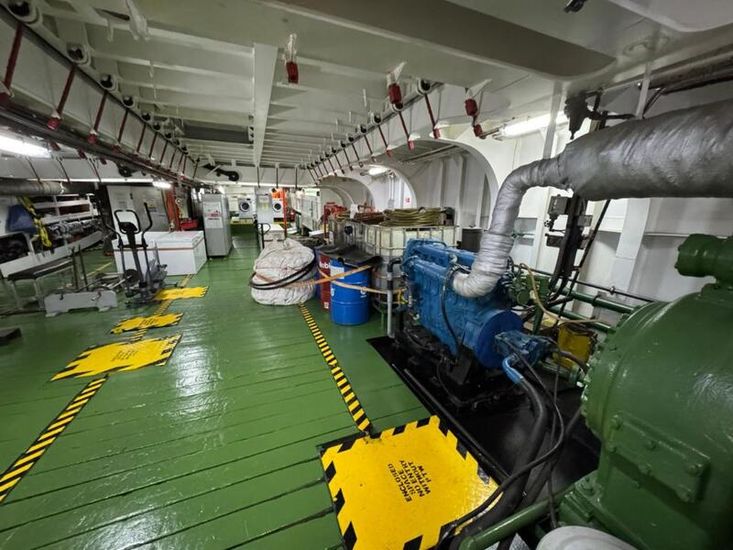

Auxiliary engine(s) 3 X 90 KW , Cummings 6BT 5.9
Speed maximum 10.5 knots
Certification
Flag CYPRUS
Class Society and Notation DNVGL 100 A5 Offshore Supply Vess
Next DD May 2027
Next SS March 2029
Disclaimer
All details are given in good faith and are believed to be accurate but no warranty of accuracy or completeness or suitability for purpose is either stated or implied. Prices are subject to change without notice.
- DO NOT REPRODUCE, CIRCULATE OR ADVERTISE COMPLETELY OR PARTIALLY ANY OF OUR LISTINGS AND/OR CIRCULATIONS WITHOUT EXPRESSED WRITTEN AUTHORISATION -
Location Map
Note: Indicated location is approximate general area only.
