Description

General

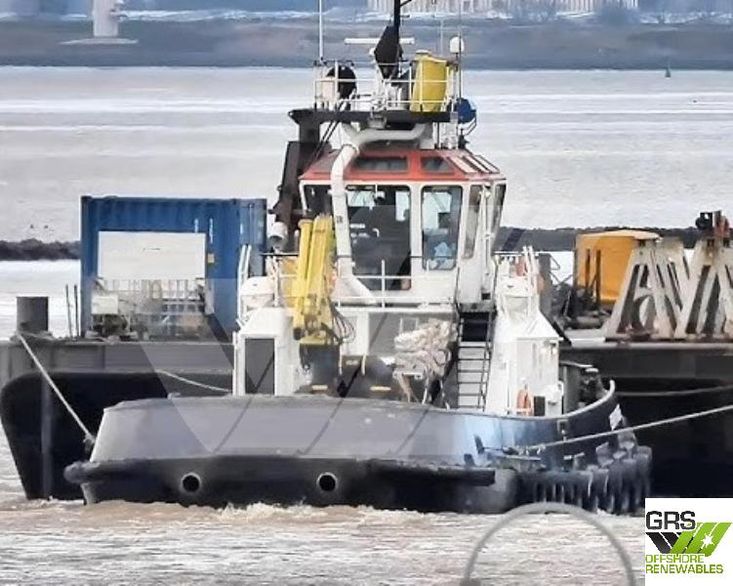

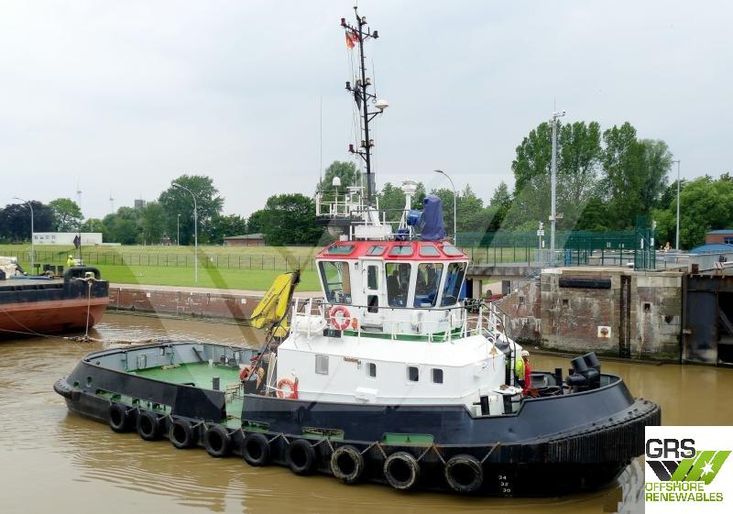

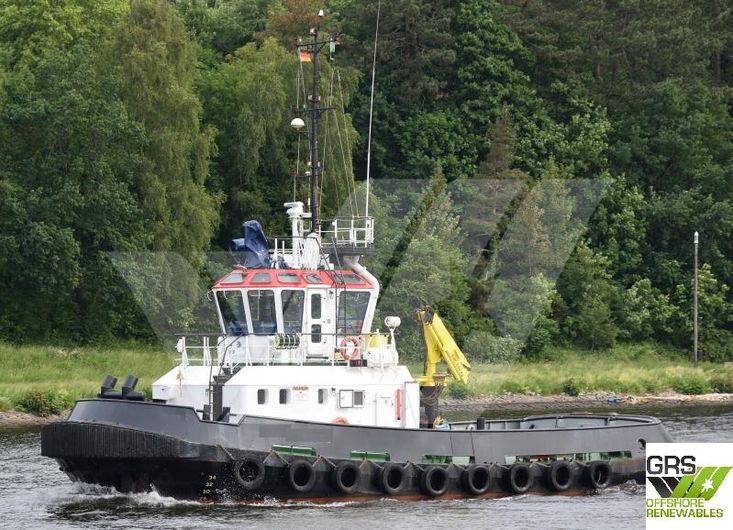

Vessel Type: Tug
Built: 2012
Yard: Damen
Flag: Portugal (Madeira)
Port of Registry: Madeira
Class: BV + HULL “MACH” Tug Unrestricted Navigation
Tonnage: GT 140 / NT 42
Dimensions
Length: 22.64 m (overall)
Beam: 7.80 m
Depth: 3.78 m
Draught: 3.60 m
Performance
Speed: 12 kn
Bollard Pull: 43.2 metric tons
Tank Capacities
Fuel Oil: 36.4 m³
Fresh Water: 8.6 m³
Accommodation
Total accommodation: 8 persons
Crew: 4
Propulsion
Main Engines: 2 × Caterpillar 3512 ELEC
Total Power: 2,200 kW
Gearboxes: 2 × Reintjes WAF 665L / 5.95:1
Propulsion: 2 × Kaplan II fixed pitch propellers in nozzles
Electrical
Generator Sets: 2 × Cat C 4.4 T
Capacity: 230/400 V, 64.5 kVA, 50 Hz
Deck Layout
Anchors: 2 × 225 kg Pool (high holding power)
Chain: 247.5 m, chain dia. 26 mm U2
Anchor Winch: DMT, electric, 10 t, 1.5 m/min, warping head
Capstan: DMT, electric, 3 t at 15 m/min
Deck Crane: Heila HLM 10-25, 1.0 t at 8.60 m
Towing Hook: Mampaey, Disc Type, 45.5 t
Towing Wire: 64 mm diameter
Fendering: Rubber bow and stern fenders
Nautical & Communication Equipment
Search light
Radar system
Satcom
Magnetic compass
Auto pilot
GPS
Echo sounder
Intercom
VHF
SSB
Navtex
AIS
EPIRB
SART
Anemometer
LOA 22.57 m
Beam 7.84 m
Draft 3.16 m

Bollard Pull : 43 tons

Speed : 11 knots
Engines : 2 x Caterpillar / Caterpillar Inc 3512B, 1,940 kw, 1,200 rpm, Propellers 1 Fixed Pitch (Port Side) + 1 Fixed Pitch (Starboard)
Auxiliaries Engines : 2 Caterpillar 63 kw

Fire Fighting System installed

Built in year 2012
Design is : Damen ST 2208
Class : Bureau Veritas
Flag : Portugal (Mar)
Gross Tonnage of 140 and Nett Tonnage of 42

Deadweight : 70 metric tonnes

Specifications

Engine(s)

2 x 1,940 kw, 1,200 rpm, Caterpillar / Caterpillar Inc 3512B,
Propellers: 1 Fixed Pitch (Port Side) + 1 Fixed Pitch (Starboard)

Certification

REGISTERED Achilles Member:
- UVDB Registered
- CONNEXIO Accredited
- SELLIHCA Qualified

MEMBER Renewable Energy Hamburg
MEMBER Bundesverband Windenergie
MEMBER Windenergie Agentur Bremerhaven
MEMBER Windenergy Network
