Description

Gross Tonnage (GT) / Net Tonnage (NT): 246 / 73
Length (Overall): 29.10 m
Beam: 9.00 m
Depth: 4.25 m
Draught: 3.50 m
Performance
Speed: 11 knots
Bollard Pull: 30.0 tonnes

Tank Capacities
Fuel Oil: 217.0 m³
Fresh Water: 34.0 m³

Accommodation
Total Persons Onboard: 8
Crew: 5

Propulsion
Main Engines: 2 × Cummins KTA 38 M2
Total Power: 1,792 kW
Gearboxes: 2 × Hangzhou HCT1100

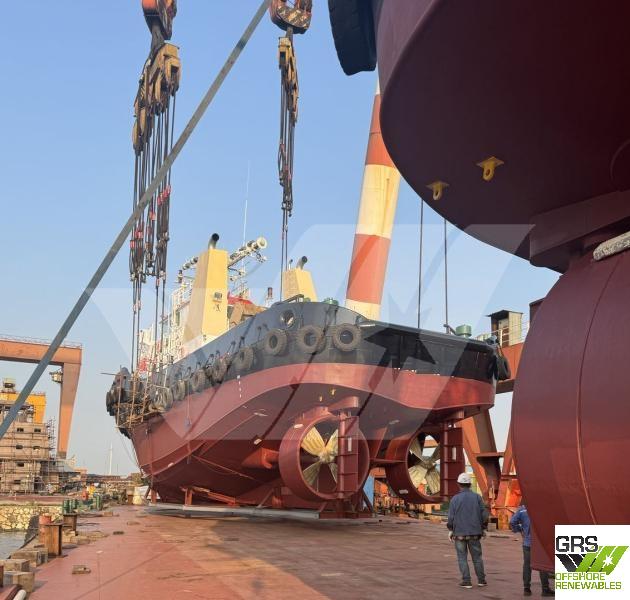

Propulsion: Propellers in nozzles

Electrical
Generator Sets: 2 × Cummins 6CT8.3-d
Capacity: 230/400 V, 122 kW, 50 Hz

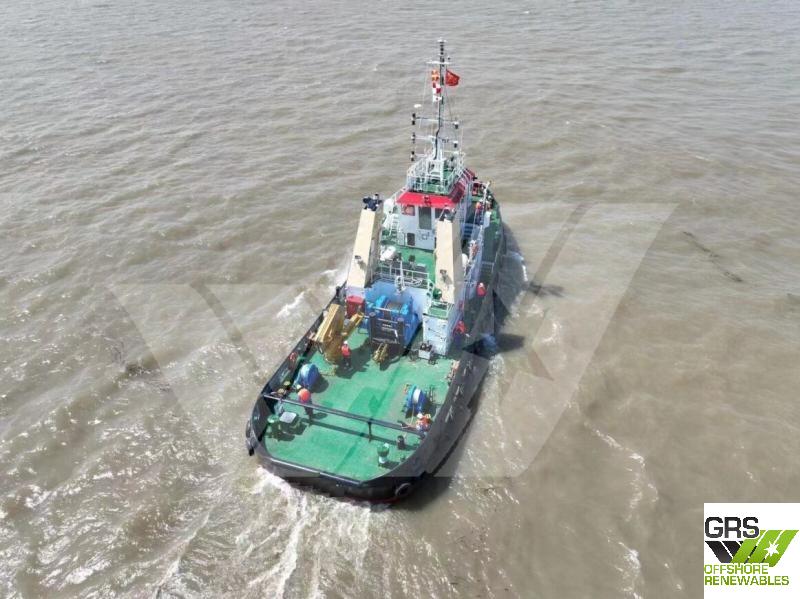

Deck Layout
Anchors: 2 × 480 kg stockless
Chain: 357.5 m, diameter 24 mm U2
Anchor Winch: Electro-hydraulic, 14 m/min, incl. warping

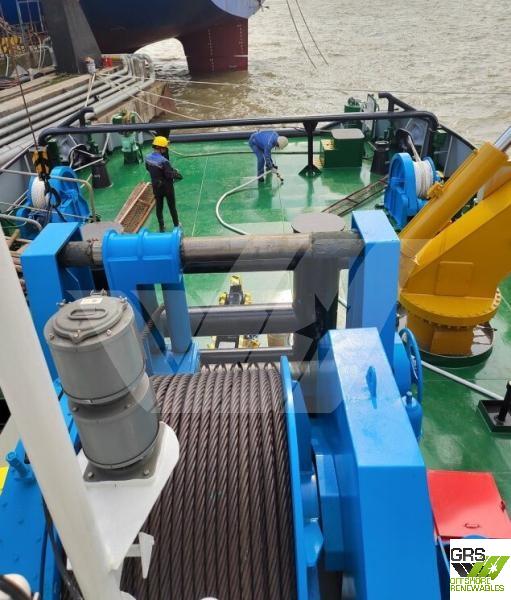

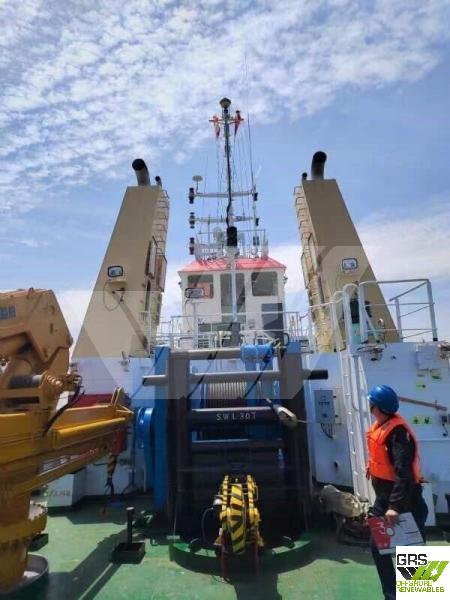

Towing Winch: MG-HTW/SD-30/080; 30t @ 7.5 m/min (low speed), 8t @ 21 m/min (high speed)
Coupling Winch: 75 m × Ø 28 mm wire; Pull 5 t; Speed 9 m/min
2 × Capstans: Electro-hydraulic, 4.0 t @ 9 m/min

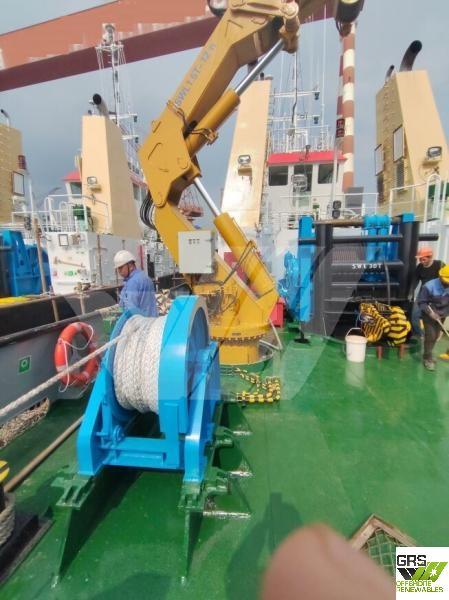

Deck Crane: Ocean Power 1.5 t / 12 m
Towing Hook: 40.0 t
Towing Wire: 650 m × Ø 44 mm SWR
Fendering: Rubber bow and stern fenders
Nautical and Communication Equipment
Search Light

Radar System
Satcom
Magnetic Compass
Auto Pilot
GPS
Echo Sounder
Intercom
VHF
SSB
Navtex
AIS
EPIRB
SART
LOA 29,1 m
Beam 9 m
Draft 3,5 m

Bollard Pull : 30 tons

Engines : 2 x Cummins / Unknown Builder KTA-38-M2, 2.238 kw, 2.050 rpm, Propellers 1 Fixed Pitch (Port Side) + 1 Fixed Pitch (Starboard)

Built in year 2024
Class : American Bureau of Shipping
Flag : Portugal (Mar)
Gross Tonnage of 246 and Nett Tonnage of 73

Specifications

Engine(s)

2 x 2.238 kw, 2.050 rpm, Cummins / Unknown Builder KTA-38-M2,
Propellers: 1 Fixed Pitch (Port Side) + 1 Fixed Pitch (Starboard)
