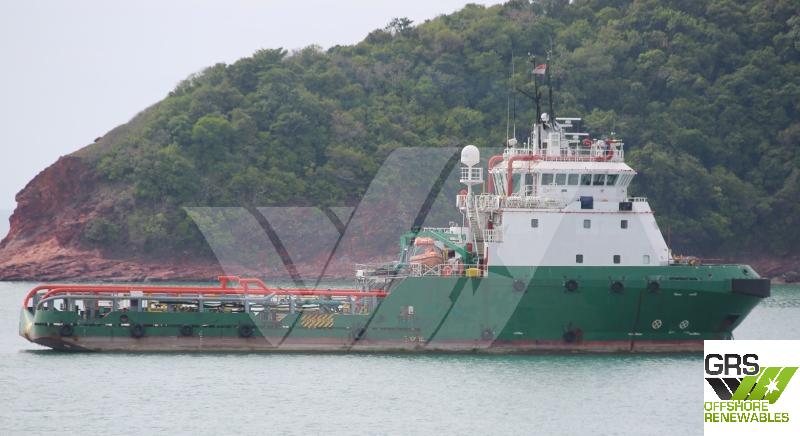

Description

EN BLOC STARTING PRICE INCL. 1 SISTER (See GRS Vessel Advert: #1073993)
Link: https://grs.group/grs-offshore-renewables/purchase/offshore-vessels-for-sale/offshore-vessels-for-sale-results/offshore-vessels-for-sale-detail/?type=purchase&vid=%231073993

Starting Price / Reserve Price: US $9.0million;
Bidding Deposit: US $0.9million (the Bidding Deposit”).
Each increment of the bidding price shall be in an integer multiple of US$20000.

The Vessel is classed as "Laid Up" and the physical condition of the Vesselss are also in lay-up.

Class: ABS;
Trading Area: Unrestricted;
Class Notation: ?A1, Towing Vessel, Fire Fighting Vessel Class 1, Offshore Support Vessel, AH, , ?AMS, ?DPS-2  BP 85.01 MT RETEST 17 APR 2021, CRC
LOA/MLB/MLD: 59.78m x 15.00m x 5.50m;
GRT/NRT: 1733/519;
Deadweight: 1453t;
Summer Draft: 4.88m;

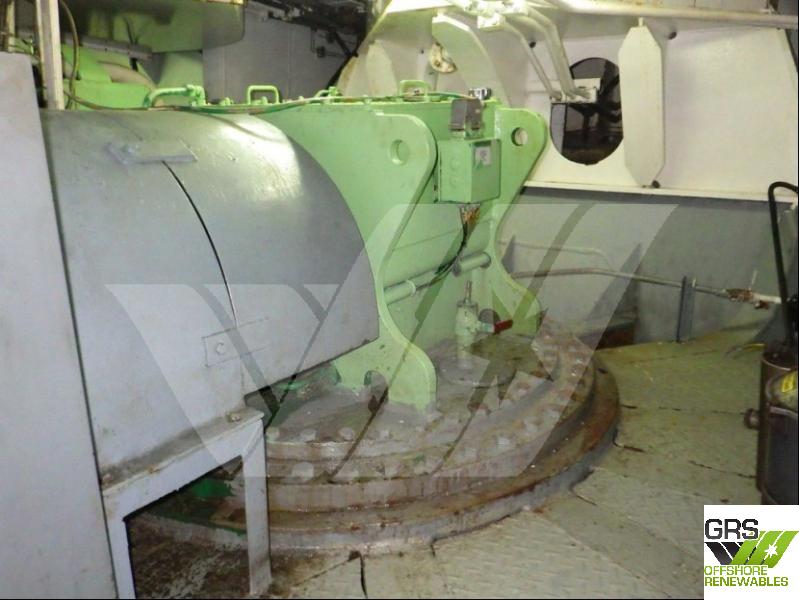

Azimuth Propeller: SP20, 1685kW x 3 sets;

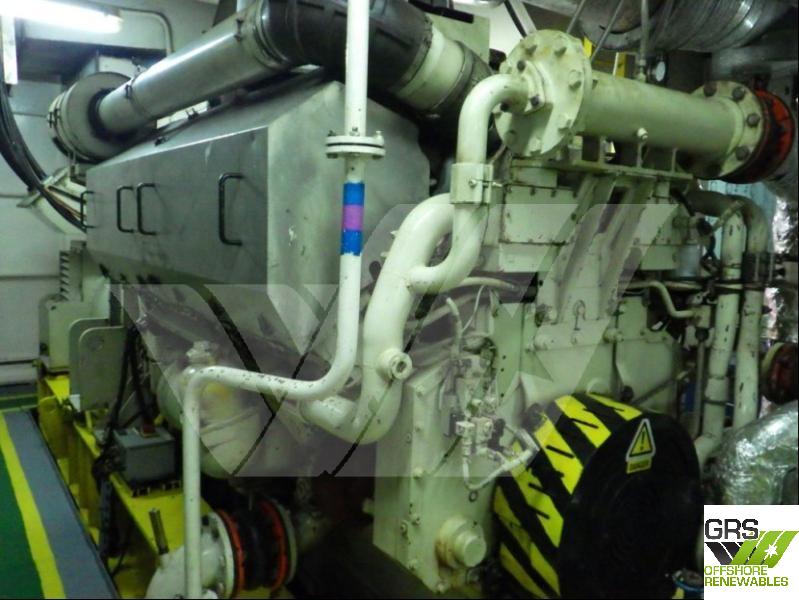

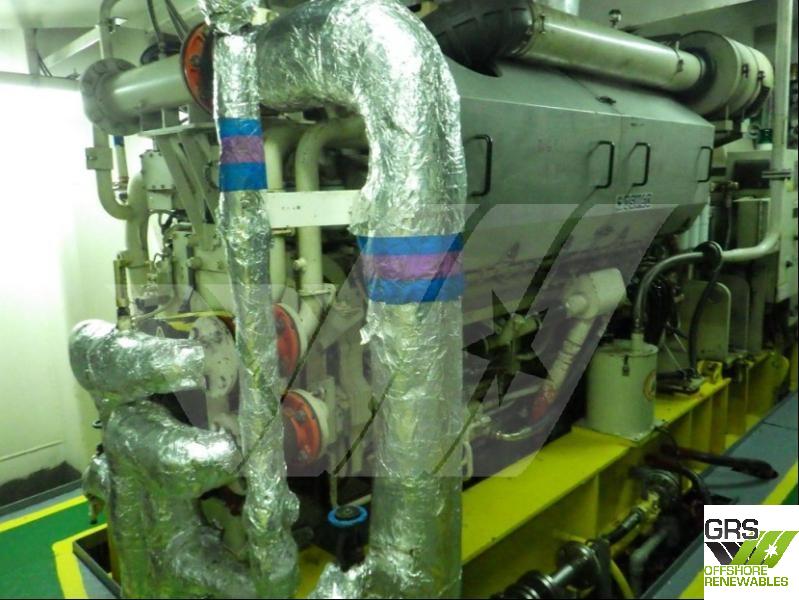

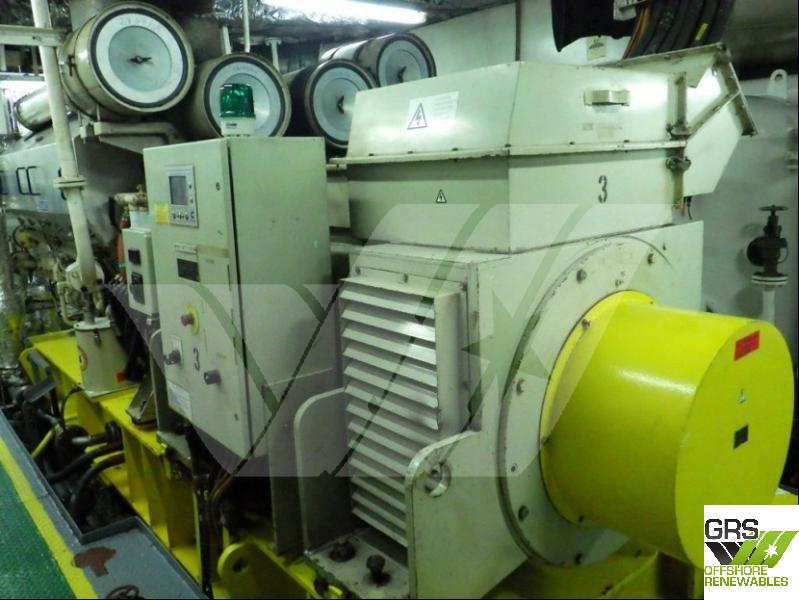

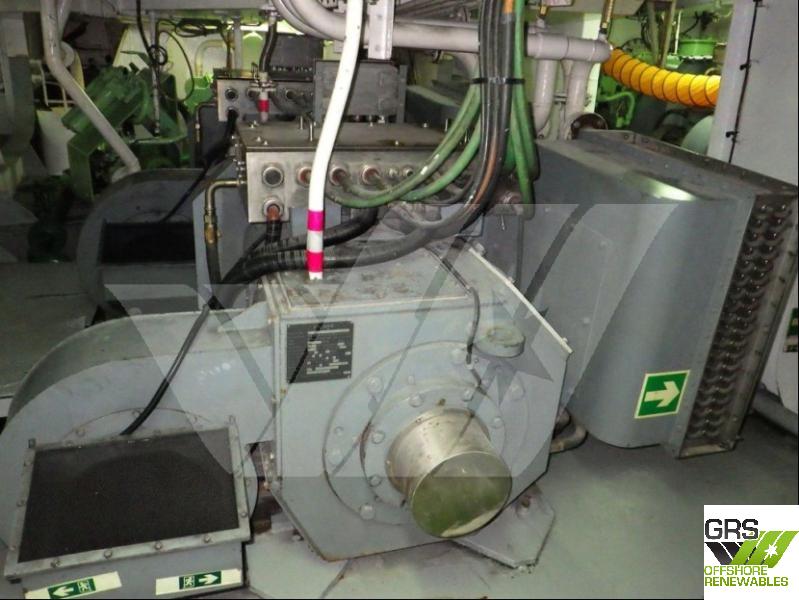

Main Generator: Cummins QSK60DM, 1825kW x 3 sets;
Emergency Generator: Cummins 6CTA83DM, 160kW x 1 set;

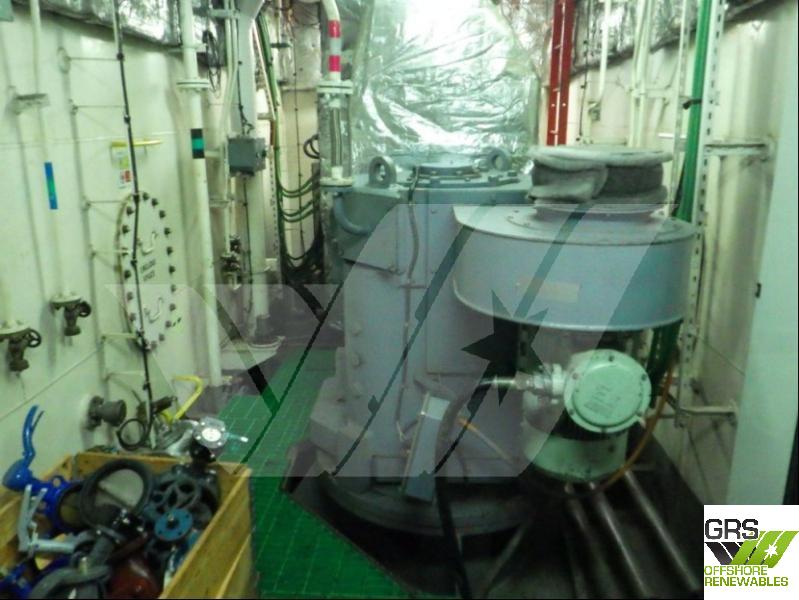

Bow Thruster: BFTT316, 560kW x 2 sets;
Fire Fighting: FiFi 1;
Dynamic Position: DP2;
Bollard Pull: 85.01MT;
Built Time/Shipyard: 2009/Zhejiang Shipbuilding Co.,Ltd;
Deck Area: 331?; Deck loading: 5t/?;
F.O.Tank: 606.61 m3; F.W.Tank: 354.52 m3;
B.W.Tank: 458.62 m3; Mud Tank: 651.44 m3;
LOA 59,78 m
Beam 15 m
Draft 4,88 m
Bollard Pull : 82 tons

Dynamic Positioning of class : DP 2

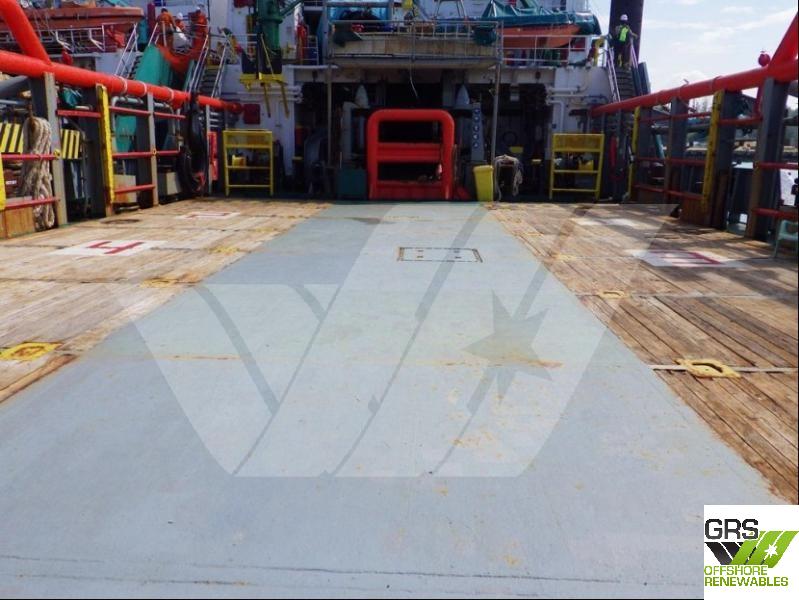

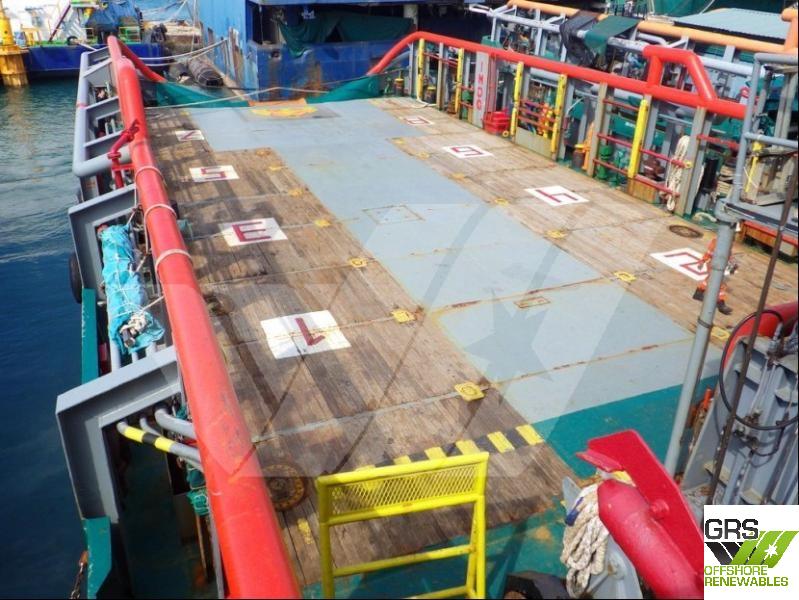

Free Deck area about 331m² with a deck strength of 5 metric tonnes per square meter
Fire Fighting System of type FiFi 1 installed

Built in year 2009
Design is : GPA 254L
Class : American Bureau of Shipping
Flag : Singapore
Gross Tonnage of 1.733 and Nett Tonnage of 519

Deadweight : 1.453 metric tonnes

Total 20 berths

Speed : 12 knots
Engines : 3 x Cummins / Cummins Engine Co Inc QSK60-M, 5.475 kw, 2.300 rpm, Propellers 1 Z Type (Port Side) + 1 Z Type (Starboard) + 1 Z Type (Center)
Auxiliaries Engines : Bowthruster + No Sternthruster (2 Bow Tunnel thruster 560kw)

Specifications

Engine(s)

3 x 5.475 kw, 2.300 rpm, Cummins / Cummins Engine Co Inc QSK60-M,
Propellers: 1 Z Type (Port Side) + 1 Z Type (Starboard) + 1 Z Type (Center)
