Description

Vessel Application : Security operations, crew transfer, cargo, standby support, survey and seismic services, medical evacuations, etc.
Crewing : 11 plus crew with 68 passengers (options)
Classification : BV cargo passenger unrestricted

Specifications

Accommodation

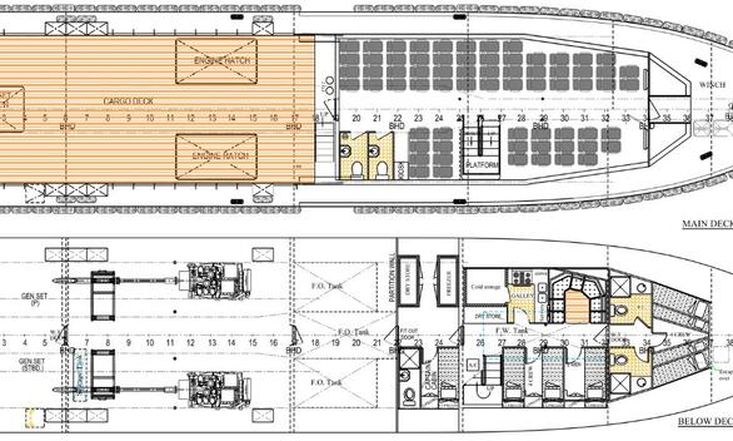

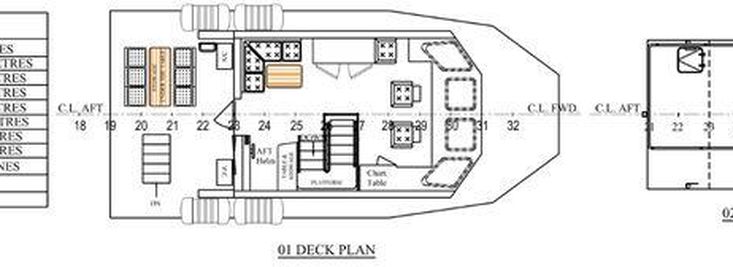

Airconditioned and heated habitable spaces, cabins 2 x 4 person, 1 x 2 person and 1 x 1 person. Galley, WC’s, and showers. Seating for 68 PAX. (many options available)

Construction

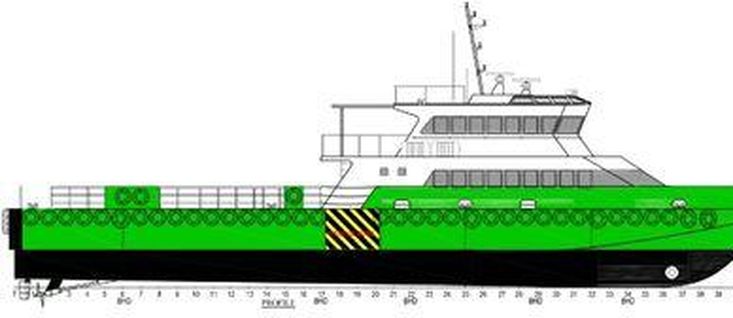

DIMENSIONS
Length Overall 34.0 meters
Beam 7.50 meters
Draft 2.10 meters
Clear Deck Area 87 meters square
Deck Strength 3.0 tonnes/m2
Deadweight 72 tonnes

Equipment

AUXILIARY EQUIPMENT
Sewage Treatment 1,000 litres STP
Oily Water Separator 15ppm (optional)
Fire Hydrants 3 station
Fixed Fire System CO2 (if required)
Bilge System Mechanical with electric backup
Bow Thruster 50 HP (optional)

DECK EQUIPMENT
Fendering Half round strake c/w aircraft tyres
Deck Protection Hardwood timber (optional)
Stern Loading Flush push up
Deck Crane Knuckle boom 1 tonne @ 15 meters (optional)
Mooring 8 x double bit bollards
Crew Transfer Transom and side rescue zones
Access Gangway and gunwale door
Anchor 1 x 140 kg with 120 chain, 1 x winches

Navigation Equipment

Searchlight 2 x 240 remote control
Radar System Simrad NSS16 MDF Halo 20 48 NM
Echo Sounder Simrad BSM 3 c/w 1 kW TXPR
Nav Plotter Simrad NSS16
GPS Simrad GS25
DGPS Simrad MX610
Auto Pilot Simrad AP70
SSB / HF Radio Icom M85E
VHF Radio Icom M510E
Handheld Radio 1 x Icom M85E
Compass Simrad Fluxgate FC40
Intercom 2 x Icom M510E c/w wireless remote
Barometer / Clock As directed by Flag State
Navigation Lights SOLAS approved
Fog Horn SOLAS approved
Deck Lights 6 x recessed
EPIRB Simrad 406
SART Simrad SA70

Engine(s)

Main Engines 2 x Caterpillar C32 @ 1080 kW each
Propulsion FPP aligned with keels c/w twin rudders
Generators 2 x 45 kW 415V 50 hz
Exhaust Wet

Certification

All newbuild ships and boats are built to IACS Classification and flag state rules pertaining to the country of destination.
