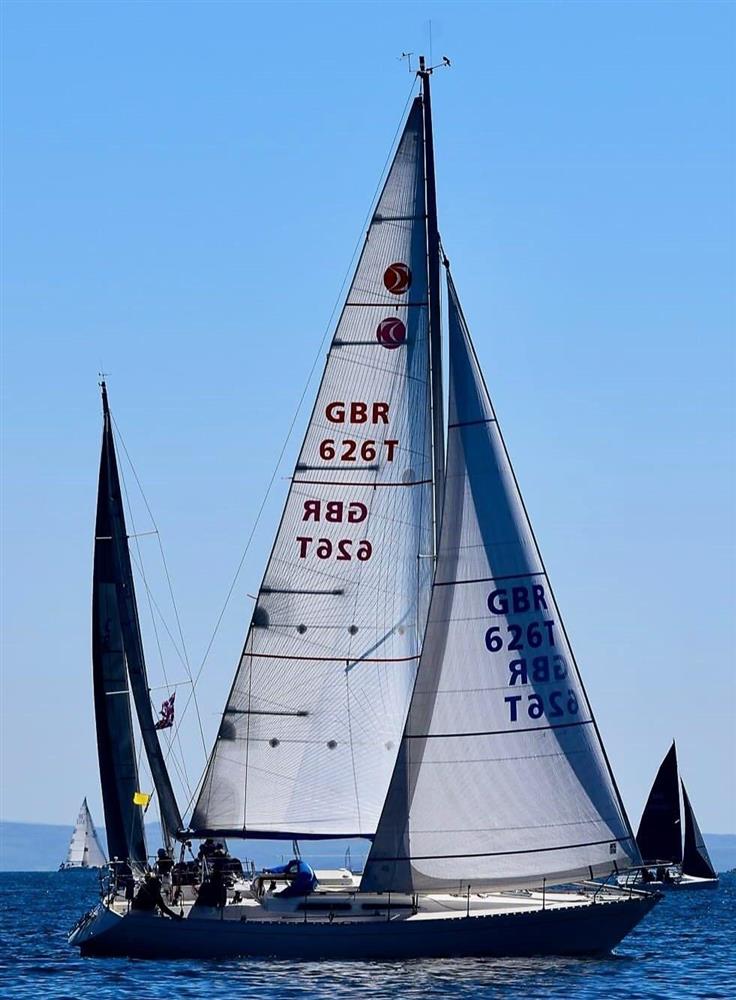

Sigma 36 Fin Keel Built in 1984
This is a good example of this very popular cruiser racer from the pen of David Thomas and built by renowned British boat yard Marine Projects of Plymouth.
'Saracen' offers a good inventory and sail wardrobe.
Loa: 10.98m - 36ft 0in
Lwl: 8.77m - 28.75ft
Beam: 3.51m - 11.50ft
Draft: 1.86m - 6.42ft
Displacement: 5,818kgs. - 12,350lbs
Builder & Designer
Builder: Marine Projects of Plymouth
Designer: David Thomas.
1 x Yanmar 3YM30 inboard diesel engine. ( 2008 )
Total Power: 30hp
3 x Cylinders
Shaft drive to two-blade Flexofold folding Propeller.
Engine Hrs. 1,462 approx.
Engine serviced 2023.
Cruising speed: 6 knots
Maximum speed: 8 knots.
Fuel Capacity: 200 litres in one Stainless Steel tank.
Water Capacity: 270 litres in two Stainless Steel tanks.
The hull, Deck, and superstructure are all of GRP.
The interior woodwork is Teak with a matt varnish finish.
Teak and Holly sole boards.
Blue Dralon upholstery.

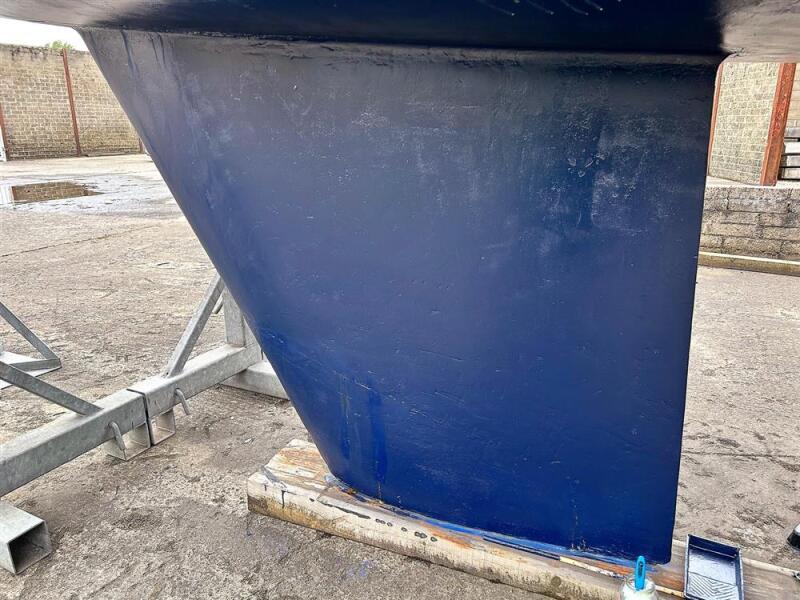

Cast Iron Fin Keel.
Under Hull Epoxy treatment in 2010.
There are 12v electrics throughout supplied by 2 x 12v 110ah batteries ( New 2023 ) which in turn are charged by the engine alternator.
240v Shore power supply with inline battery charger and cable included.
There are nine berths in Three cabins including Saloon.
Please see the Layout plan attached.
Stainless Steel Stemhead fitting with twin rollers.
36lbs CQR Anchor with 40m chain.
Kedge Anchor 25lb 30m chain and 30m warp.
Stainless steel pushpit and Pulpit
Deck mooring cleats
Stanchions with Stainless Steel guard wires.
Self-tailing winches. (2 x New Pontos self-tailing Primary winches 2016).
Fire extinguishers x 5
Smoke alarm and CO2 detectors fitted 2022.
2 x Manual Bilge pumps
2 x Horseshoe lifebelts.
Spars & Rigging
Single spreader Fractional rig by Kemp Selden in anodized aluminum with Stainless steel standing rigging.
Standing rigging was replaced in 2015.
Slab Reefing to Mainsail.
Furlex Roller furling to Headsail.
Spinnaker pole and gear.
Harken Traveller fitted 2010.
Mast serviced and new spreaders and bases replaced in 2012.
Sails & Canvas
Mainsail by UK Sails 2014 Good condition
Genoa by UK Sails 2018 Good condition
Spinnaker by North Sails Good
Spinnaker by Cummins Good
Storm Sail Good.
2nd Mainsail by Elvstrom Sails 2010 Good
Genoa by Elvstrom Sails 2010 Good.
Sprayhood and s/s frame
Mainsail Stack Pack and Lazy jacks New 2011
Dodgers with boat name.
Spare Mainsail cover

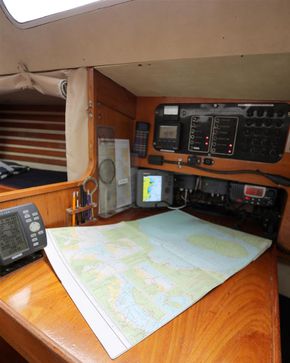

Navigation & Electronics
Full Navigation lighting Mast and deck level.
Raymarine ST60 Log/speed
Raymarine ST60 Depth
Raymarine ST60 Wind/speed/direction
Raymarine VHF Radio.
Raymarine GPS Colour Chartplotter
Raymarine Autopilot with New P70 Head unit in 2017.
Eberspacher Central Heating.
Clock & Barometer.
Hot and Cold pressurized water system heated via a calorifier.
Neptune 3 burner cooker with oven and grill.
Warps and Fenders.

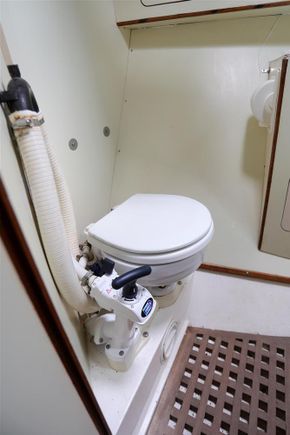

- Marine head
- Furling genoa
- Manual bilge pump
- Spray hood
- Swimming ladder
- Wind speed and direction
- Battened mainsail
- Log speedometer
- Steering wheel
- Storm jib
- Lazy bag
- Shore power inlet
- Mainsail cover
- Hot water
- Battery charger
- Spinnaker pole
