|Tax Status:||Tax Paid|
North Fambridge Essex UK
Beautiful Yacht designed by Jason Kerr, one of only four prototypes built for the more famous Southerly 49 ( Distant Shores Two ) and destined to become a classic.
This Yacht has an extensive international & British cruising record with two owners until now. She is well maintained & moored at present on the East Coast where her minimal draft with her keel up is very useful. When dropped the keel is deep & affords an outstanding upwind performance for a comfortable well equipped cruising boat.
|Fit Out:||See photos|
|Sail number:||GBR 9976T|
|No. of engines:||1|
|Engine model:||Yanmar 56 J series|
|Drive type:||Shaft drive|
|Length over all:||14.1m|
|Length at waterline:||42' 11"|
|Hull material:||Glass Fibre|
|Hull type:||Displacement with flat grounding plate|
|Keel type:||Lifting Keel|
|Displacement:||13 metric tons|
|Fuel capacity:||390 Litres|
|Water capacity:||605 Litres|

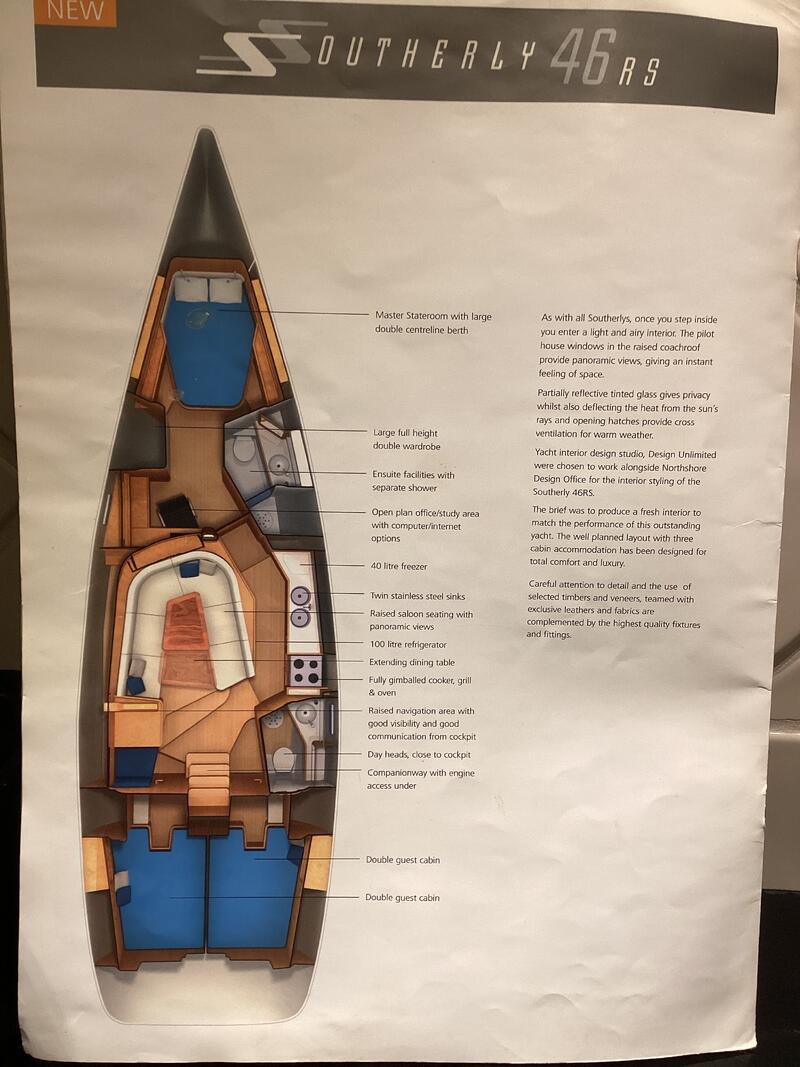

Bow master double cabin with adjoining office/ vanity area/ spare chart room.
Two stern double cabins with dividing Lee clothes if needed.
Central saloon seating area with two normal length sofa/ sleeping berths & one short one.
Option to convert central table into large sleeping berth instead.
Hull structure uses the Nordseal system, with sandwich construction topsides ( PVC foam ) & a single skin bottom stiffened by foam cored transverse floors & bilge stringer. Bi-axial reinforcements are used with local application of uni-directionals. The resin is predominantly DCPD.
The keel trunk is an integral part of the hull structure. Bulkheads are lightweight foam cored & bonded to the hull.
Foam cores are vacuum bagged to ensure the integrity of the sandwich construction.
Deck:- Delta anchor 30 m chain, 50 m warp. Kedge Fisherman. Windlass Lewmar V3 Electric. Lifeline gates.
Winches Lewmar types 54, 46 ( powered ) 44. All sheets & regular haliards led to clutches in cockpit. Selden jib furler to powered winch. Fenders & boathooks ( 3 including ring catcher). Long handled scrubbing brush, deck brushes, buckets & cleaning equipment.
Binnacle cover. Bathing Platform. Boarding ladder. Fenders. Warps. Rubber Dingy ( optional )
Canvas :- Stackpack, Sprayhood, Bimini ( stored )
Below deck:- Electric fan cooling & Eberspacher hydronic heating throughout. Cooker stove gimballed, Force 10 fuelled by Camping gas 907 ( butane) cylinders (3). Refrigerator & Freezer both keel cooled. Radio + CD player.
TV/ DVD player. Cutlery & Kitchen equipment ( + Pots & Pans ). Plates, glasses & mugs fitting in cabinets designed for them.
Lighting touch switches, original Empirbus system ( complicated electronics) removed with conventional re wiring.
Batteries 12 volt. 4 service ( Trojan ) 1 starter ( Lorry ). Charging from Alternator, Duogen wind & water turbine, photoelectric mobile panel ( for mooring )
Water systems:- Salt to Spectra water maker, second kitchen sink, both heads & steel holding tank ( @100 litres).
Fresh pressurised to sink, 2 head basins & 2 showers with 2 water tanks holding 545 litres. Fresh water pump with accumulator tank. Stern deck shower & extension to anchor locker never used but original equipment still fitted.
Various tools & spare parts, particularly electrical. Semco teak deck cleaners & sealers ( optional ).
2 cockpit compases & flux gate between cabins.
Raymarine log, wind,GPS, Axiom plotter ( under warranty) echo sounder, autopilot, VHF & handheld, EPIRB, AIS transponder, Echomax active radar reflector, Navigation lights ( tricolour at masthead LED.
Yanmar 4JH4-E 56 HP
Trustworthy engine with little oil consumption. Enough power to motor into a Force 9.
Maxprop adjustable pitch propellor giving variable pitch for economical motor sailing.
Ambassador AM10 rope cutter on prop shaft.
Lewmar Bow thruster 75 Kg
Selden Carbon mast. 60 ft
Carbon bowsprit ( retractable)
3 jibs, all self tacking.
3 Asymetrics ( one code zero)
I mainsail fully battened with 3 reef stackpack ( North)
Gas strut kicker
Swept back spreaders plus Navtec back stay tensioner
Avon Ocean liferaft 6 man. 2010
Various Gas, Smoke, CO etc alarms
Note: Indicated location is approximate general area only.
